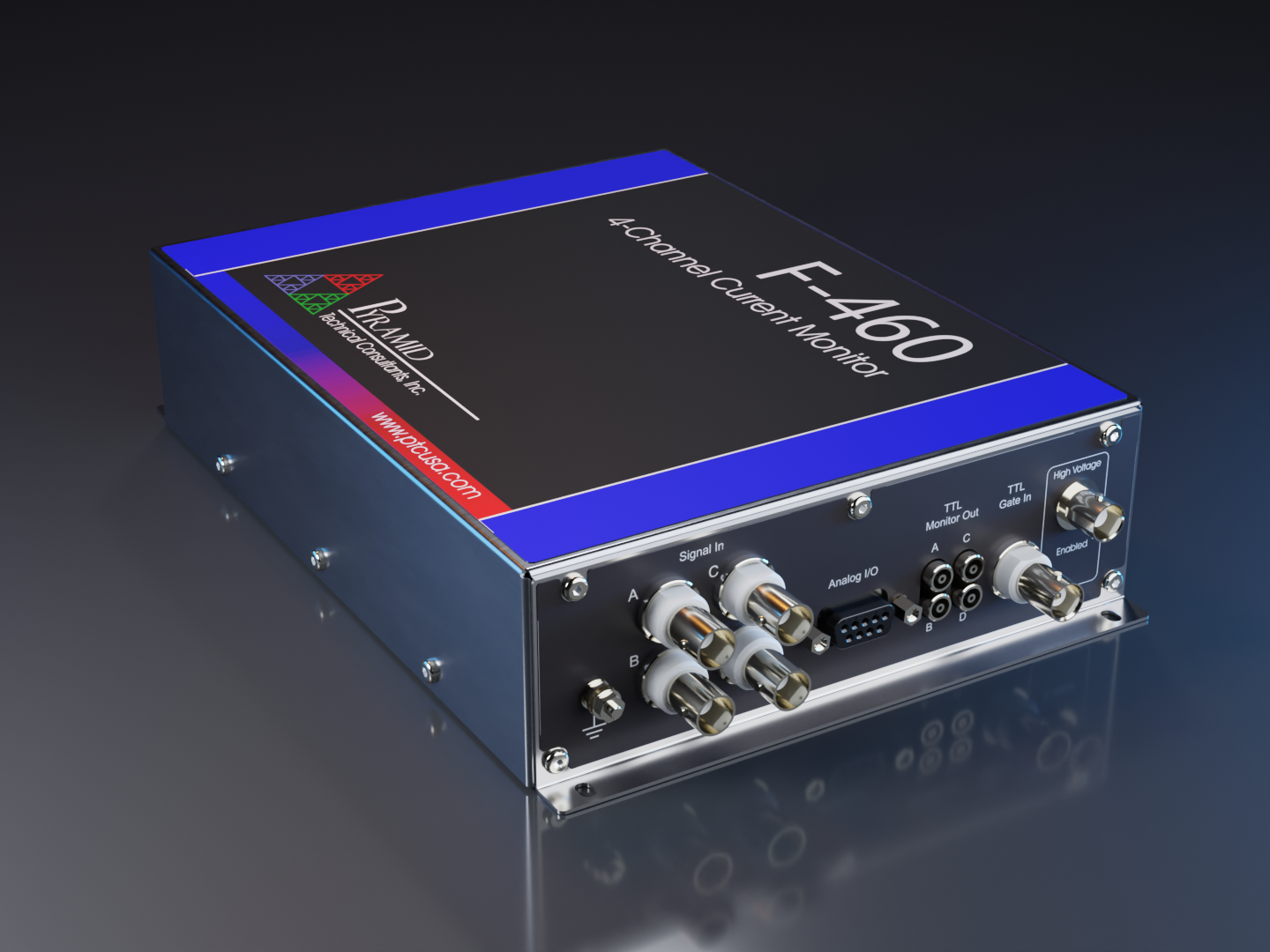

F460 - 4 Channel Precision Electrometer with High Voltage

ElectrometersIndustrial ControlCurrent Measurement

Downloads

The F460 is a 250kHz 4 channel nano-ammeter well suited for quadrant or segmented detectors. The F460 can calculate beam position real-time and servo using on-board analog outputs.

An on-board high voltage source can power an ionization chamber, low voltage bias, or an electron suppression ring.

The F460 can also operate as four separate electrometer channels. The dynamic range allows it to measure the low currents from a Faraday cup like the BC-75. The F460 has a high enough range to measure the microamps of currents in FLASH therapy.

Features

  • Dynamic range from 0.1 nA to 1mA
  • 250kHz simultaneous digitization
  • High voltage and low voltage detector bias options
  • On-board calculation of beam position in real time
  • Ethernet, Fiber-optic, and RS-232 / RS-485 interfaces
  • Integrated calibration test sources
  • External digital trigger capability
  • Servo controller option
  • Four independent VFC monitor outputs

Applications

  • Quadrant photodiode readout
  • Beam position monitors
  • Faraday cup electrometer
  • Segmented Faraday collector electrometer
  • General purpose current and charge measurement
  • FLASH therapy research electrometer
HV emco

Integrated High Voltage

  • Avoids the need for a separate external HV supply.
  • Precise programmable voltage control.
  • Choice of polarity, positive or negative, and range up to 3000V depending on the product.
  • Shared ground with measurement electronics to eliminate ground loops.
  • Short circuit protection and redundant output voltage monitoring.
XMLSnippetFinal

IG2 EPICS Support

Integrate device data collection and configuration into an EPICS system, without writing a single line of code using IG2.

  • Runs on Windows and Debian Linux
  • Change PV names with simple XML configuration
  • Connect to multiple Pyramid devices at once
  • Add custom scale factors and offsets on a PV basis
  • Never have to recompile
  • Professional Pyramid support for bugs and features
XMLSnippetFinal

IG2

Configurable EPICS channel access server for G2 and G1 devices

PX1 Closeup

FLASH Ready

Flash therapy stands as a breakthrough in radiation therapy. Our commitment centers on delivering researcher-focused, state-of-the-art Flash therapy instruments, prioritizing accessibility and promoting collaboration within the industry.

For expert guidance and partnership opportunities in upcoming radiation therapy endeavors, engage with our dedicated engineering and sales team team today.

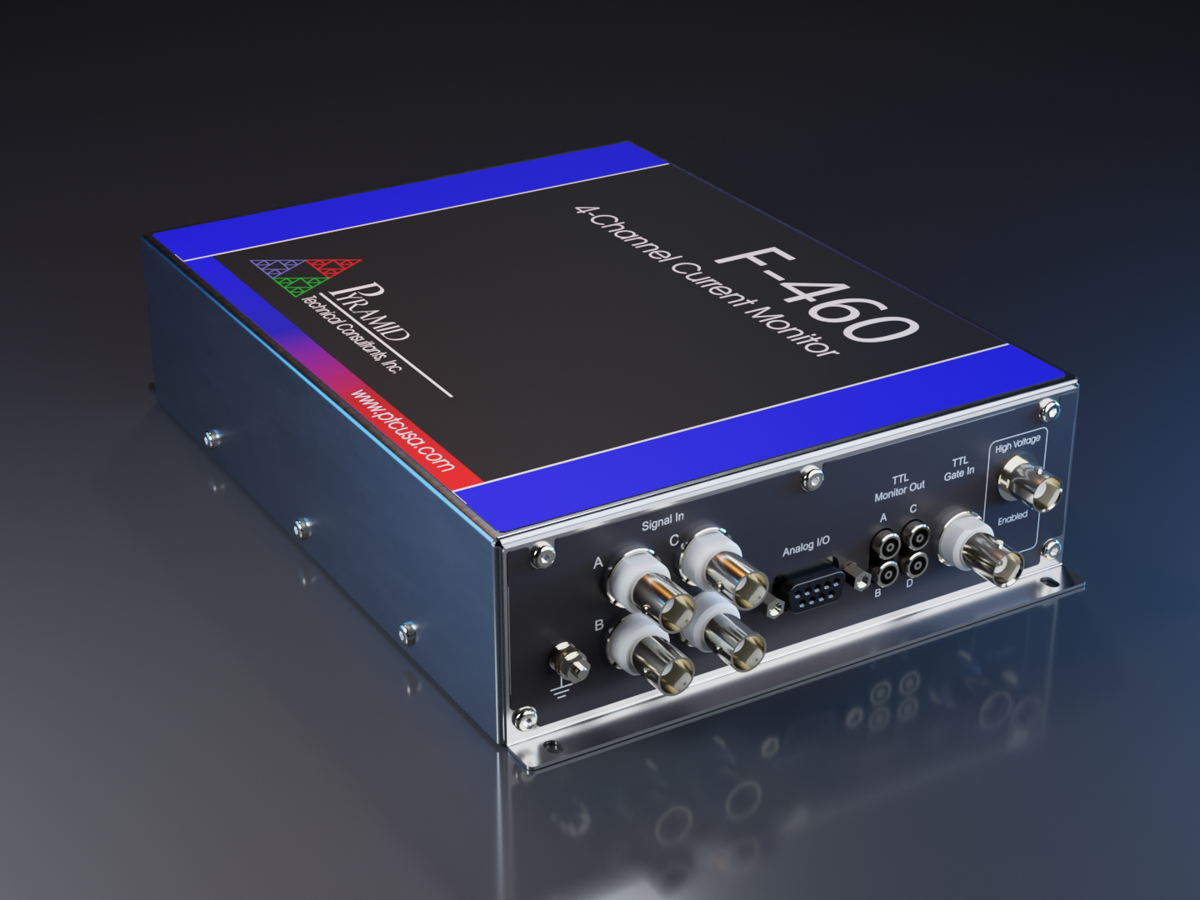

F460 Front Render
