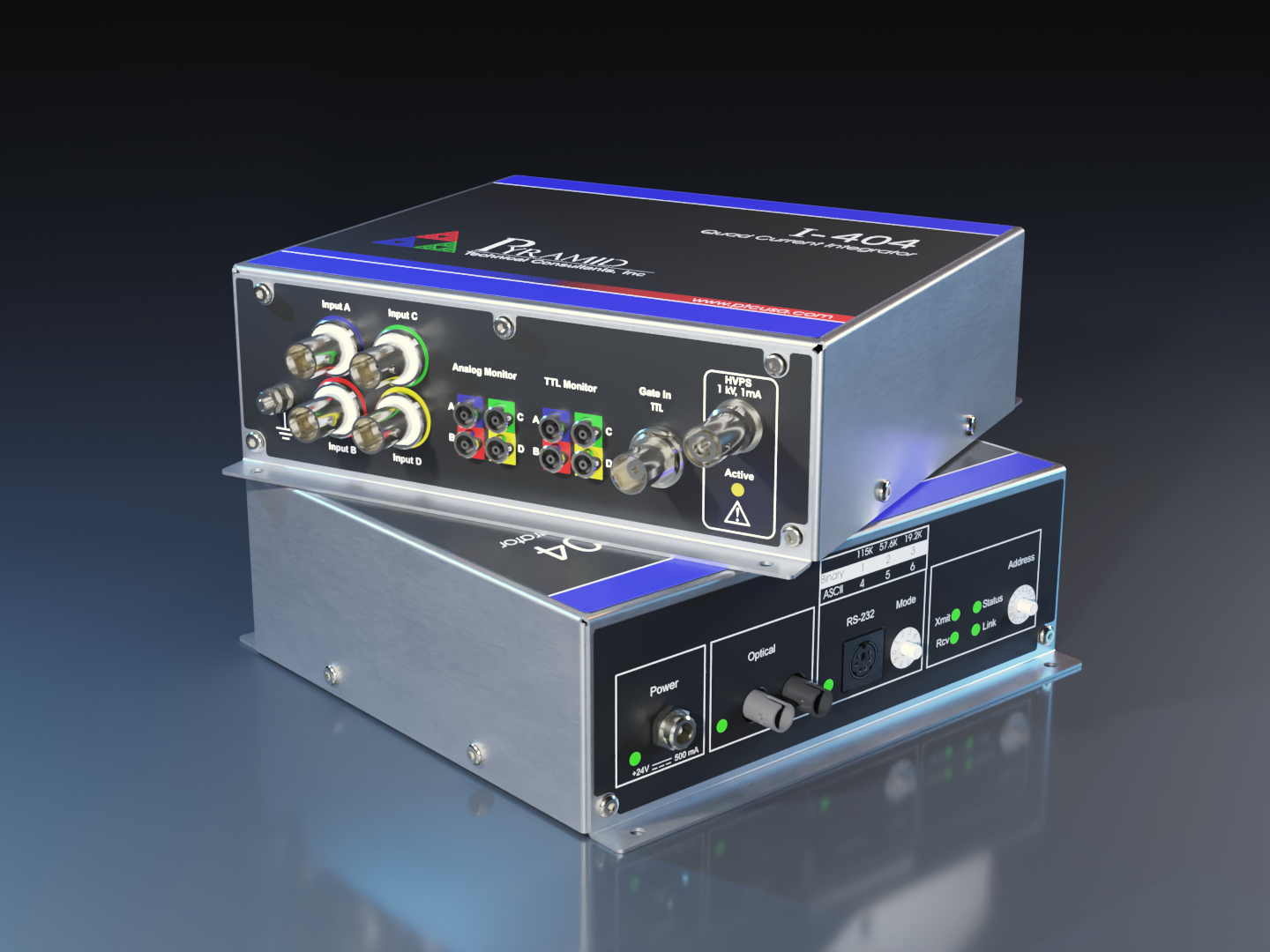

I404

4x Charge Integrator


Features

  • Four integrator channels with common gate
  • Dynamic range <1 pA to 200 µA
  • Integrated digitization and filtering
  • Fiber-optic, RS-232 and RS-485 interfaces
  • Integrated calibration test source
  • Full control provided of integration modes
  • External trigger capability
  • Four independent analog monitor outputs configurable to show current or position
  • Four independent frequency monitor outputs (VFC)
  • Optional high voltage output
  • On-board calculation of position function in real time

Applications

  • Quadrant photodiode readout
  • Low current and charge measurement
  • Beam position monitors

Fiber-Optic Communications


Measurement data is transmitted through state-of-the-art fiber-optic cables. The benefits are numerous compared to other forms of data transmission.

  • Fiber-optics are immune to electrical interference
  • Minimal attenuation of light through fibers
  • Fast messaging over enormous distances
  • Radiation hard fiber materials

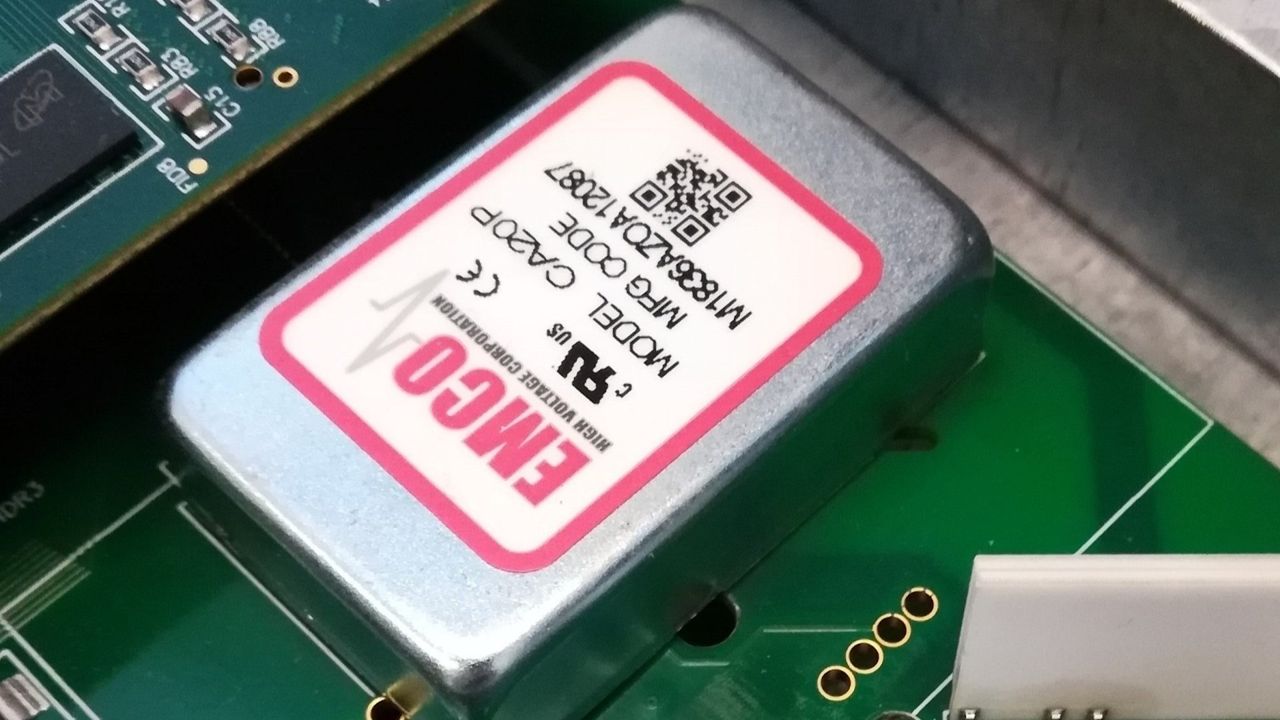

Integrated High Voltage


  • Avoids the need for a separate HV suppy
  • Precise programmable control of voltage
  • Choice of polarity and range up to positive or negative 3000 V
  • Short circuit protection and independent output voltage monitoring








Proton Therapy


Proton therapy is well established for the treatment of localized cancer tumors, especially when there are vital organs close by. This healthy tissue sparing makes it the method of choice for maintaining quality of life and especially for treating children. The proton beam delivery is fast and painless.

Proton therapy centers worldwide use Pyramid sensors, electronics, and software. Pyramid offers products for complete systems, sub-systems, or components. For more information see our Pencil Beam Scanning Brochure
