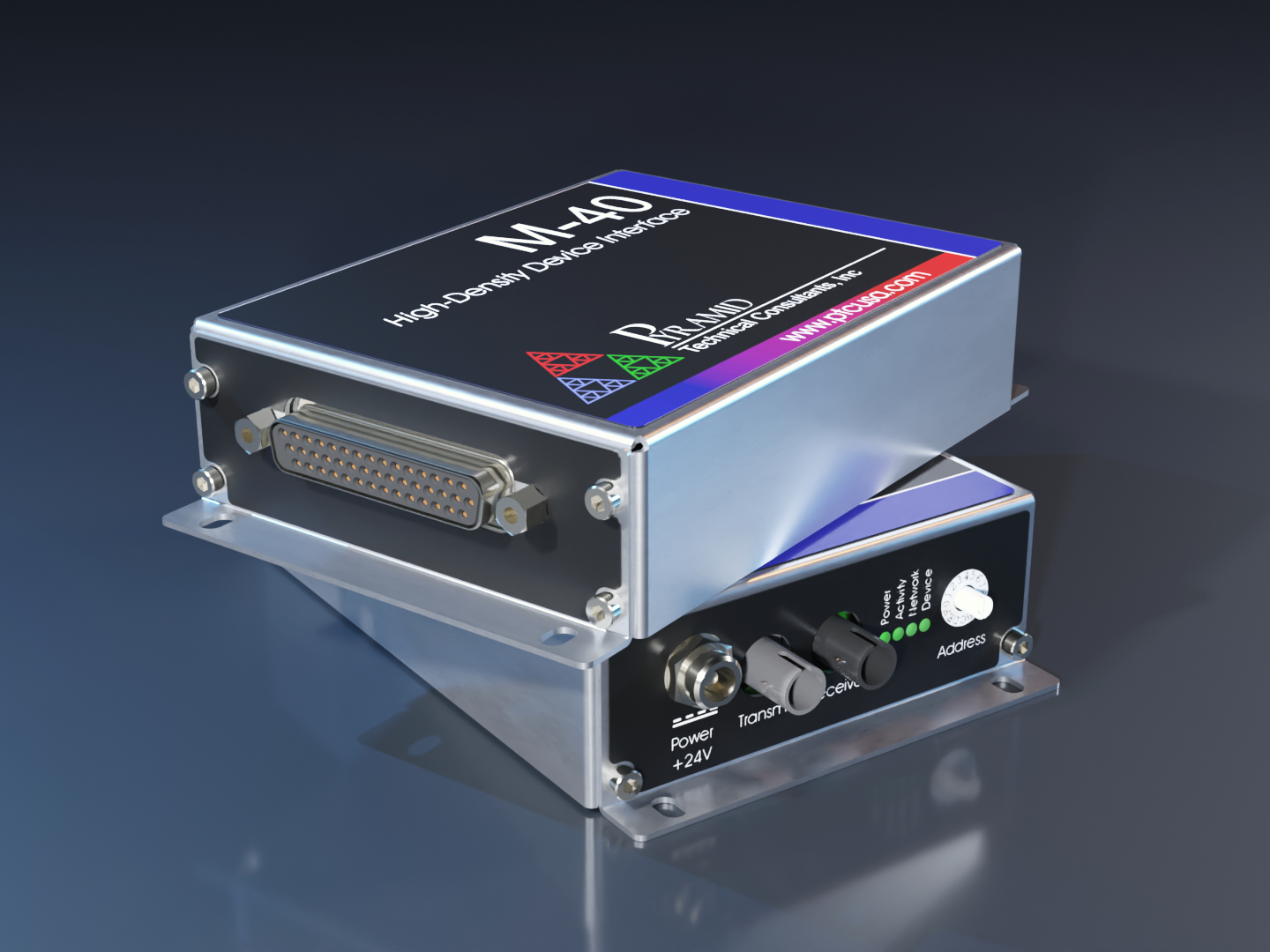

M40

16x Analog 16x Digital GPIO


Features

  • High capacity, high resolution and speed in a compact and cost-effective package
  • Eight analog outputs, eight analog inputs, eight digital outputs, eight digital inputs
  • Permits simple interfacing of existing devices to a fast fiber-optic communication loop
  • Can be mounted on or close to the device being controlled
  • Very low transition transient on analog output DACs, for compatibility with wideband power supplies
  • Buffer memory for custom waveform generation and data capture applications

Applications

  • Remote control of power supplies and similar devices over fiber-optic
  • Waveform generation for scanned or swept devices
  • Fast data burst capture to internal memory
  • Control of devices across high voltage barriers
  • Fully automated systems operating in electrically noisy environments
  • Addition of high-performance remote control to existing systems

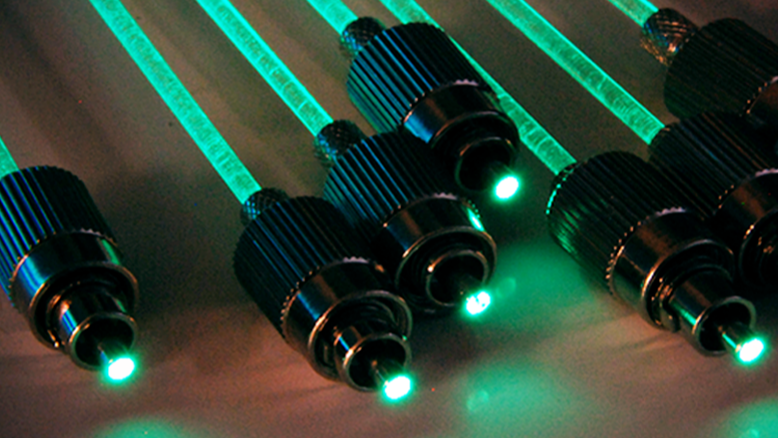

Fiber-Optic Communications


Measurement data is transmitted through state-of-the-art fiber-optic cables. The benefits are numerous compared to other forms of data transmission.

  • Fiber-optics are immune to electrical interference
  • Minimal attenuation of light through fibers
  • Fast messaging over enormous distances
  • Radiation hard fiber materials








Control Systems


Pyramid devices are modular and pefect for distributed control systems. Easy to use software and networking make prototyping and integration rapid. Pyramid provides long term customer support and high reliability for final production systems.

Our devices can tolerate high levels of HF, RF and transient electrical noise. The real time fiber optic communications between controllers and front-end devices are completely immune to electrical interference. Fiber optics can also span voltage gaps of hundreds of kilovolts. An example application is control of the power supplies in the the high voltage terminal of an accelerator ion source.
