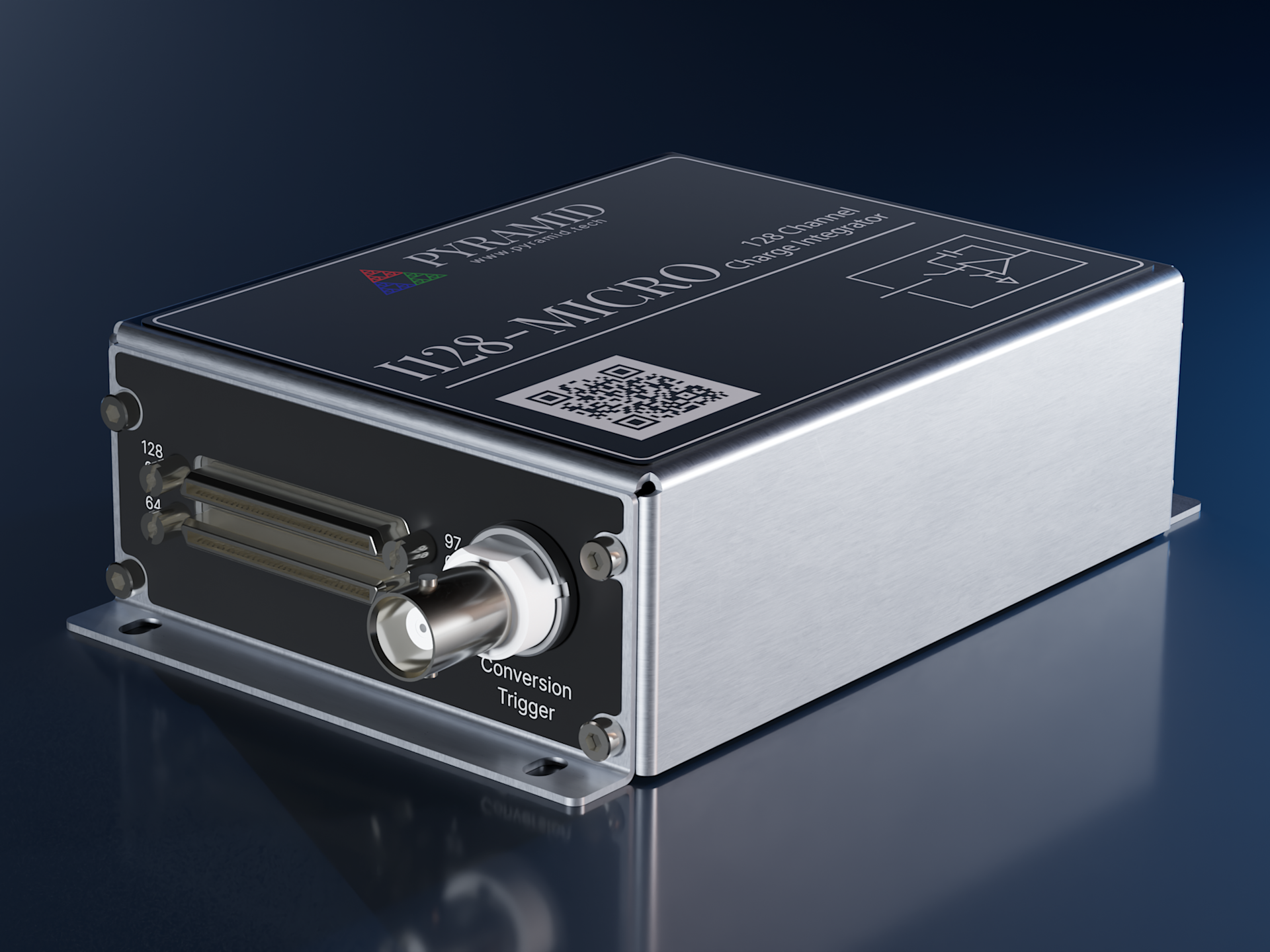

I128-MICRO - 128 Channel Integrating Electrometer
Mô tả
The I128-MICRO is a compact, high-performance integrating electrometer designed for applications requiring precise, simultaneous charge measurement across many channels. With 128 parallel integrators in a device that fits in the palm of a hand, it offers a unique combination of scale, speed, and precision.
Engineered for compatibility with multi-layer Faraday cups, segmented detectors, and pixelated arrays, the I128-MICRO supports high-rate data acquisition with selectable integration frequencies and flexible charge ranges. Its integrated real-time operating system and network-based API make it ideal for automated systems and modern control architectures.
The small form factor and fully parallel architecture enable streamlined deployment in space-constrained environments without compromising data quality. The I128-MICRO represents a new class of electrometer technology for scientific and industrial systems requiring dense, synchronized charge measurement.
Features
- 128 fully parallel charge integrators.
- Dynamic range up to 1.5 µA or 350 pC for 128 channels.
- From 1 to 6,000 Hz simultaneous sample data rate.
- Extremely compact form factor.
- External conversion synchronization BNC connector.
- Ethernet interface with web server UI and JSON API.
Applications
- Multi-layer Faraday cup readout.
- Multi-strip and pixelated detector readout.
