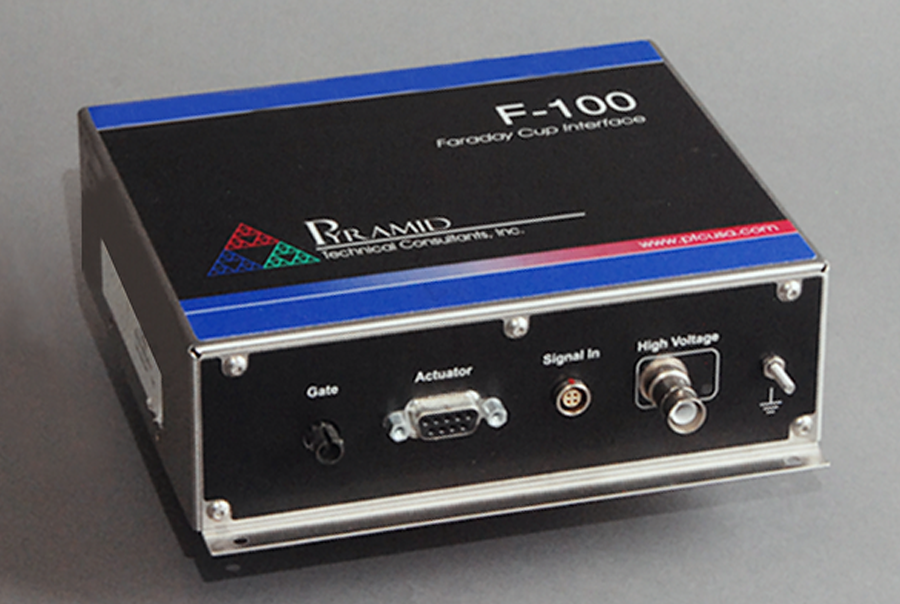

F100 - Fast Digital Electrometer

The F100 measures currents from nA to mA from an external detector. For example Faraday cups, ion chambers, beam position monitors, or photodiodes.

The primary application is real-time dosimetry for proton therapy. The F100 integrates current into a total charge. It generates a monitor pulse for each defined aliquot of total charge. After the total charge reaches a predetermined target its digital logic output triggers. This digital output connects up to a beam command or pneumatic actuator. The unit could be stand-alone or integrated into a larger control system.

The F100 can use an auxiliary high-voltage output up to 2kV. The source is suitable for electrical suppression of secondary electrons in Faraday cups like the BC-75.


  • Multirange current to voltage converter
  • Dynamic range 0.1 nA to 10 mA
  • Extended dynamic range option up to 200 mA
  • Integrated digitization and filtering
  • Integrated precision calibration source with loopback option
  • High voltage output option
  • Pneumatic actuator control option
  • RS-232, USB and fiber-optic interfaces


  • Faraday cup readout
  • Ionization chambers
  • Photodiodes
  • General precision current measurement
HV emco

Integrated High Voltage

  • Avoids the need for a separate external HV supply.
  • Precise programmable voltage control.
  • Choice of polarity, positive or negative, and range up to 3000V depending on the product.
  • Shared ground with measurement electronics to eliminate ground loops.
  • Short circuit protection and redundant output voltage monitoring.

Fiber Optics

Measurement data is transmitted through state-of-the-art fiber-optic cables. The benefits are numerous compared to other forms of data transmission.

  • Fiber-optics are immune to electrical interference
  • Minimal attenuation of light through fibers
  • Fast messaging over enormous distances
  • Radiation hard fiber materials

IG2 EPICS Support

Integrate device data collection and configuration into an EPICS system, without writing a single line of code using IG2.

  • Runs on Windows and Debian Linux
  • Change PV names with simple XML configuration
  • Connect to multiple Pyramid devices at once
  • Add custom scale factors and offsets on a PV basis
  • Never have to recompile
  • Professional Pyramid support for bugs and features


Configurable EPICS channel access server for G2 and G1 devices
