Particle Delivery System

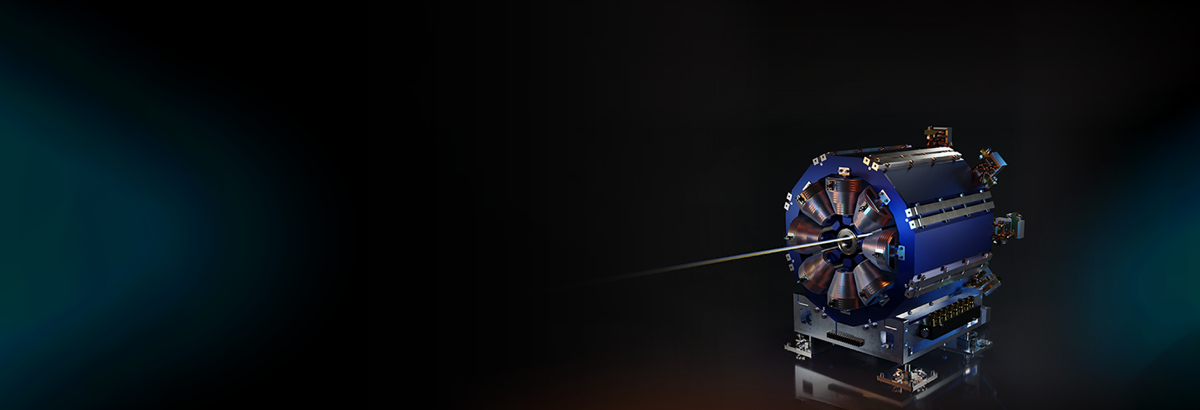

The PDS (Particle Delivery System) is a modular hardware and software product. It affixes to the end of nearly any accelerator, transforming it into a modern particle therapy system. Our PDS components have operated in treatment rooms daily for well over a decade. The PDS is the premium choice with unparalleled performance and capabilities.

  • Fast - 250μs slew with 10,000Hz data
  • Complete - Detectors, dosimetry, magnets, controls, and QA
  • FLASH - 1,000nA+ ionization chambers and electrometers
  • Proven - 20 years and over 80 rooms and counting
  • Brandable - Seamlessly integrates into your brand for a cohesive end product

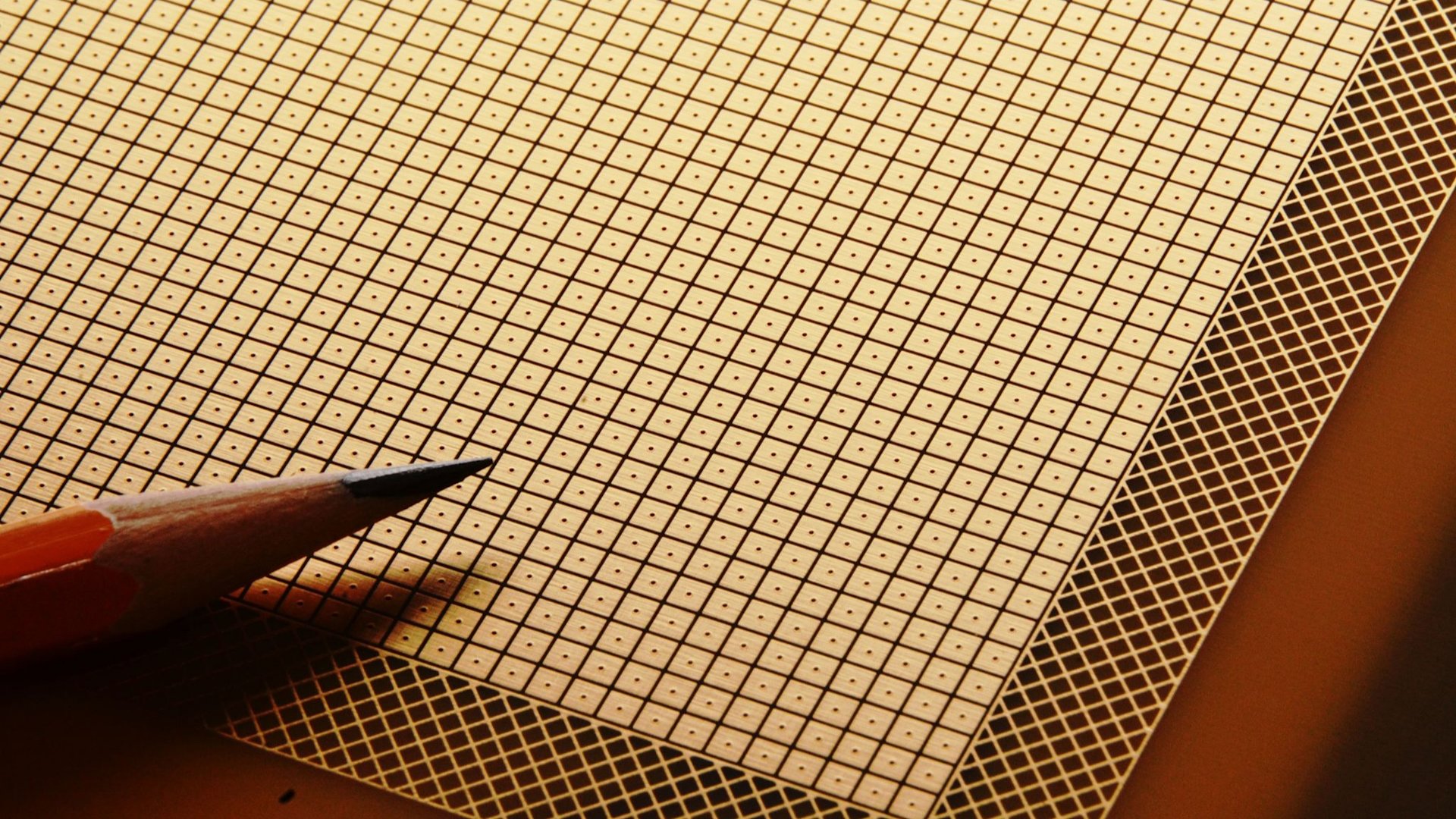

IC Pixel Grid Close Up


The Pyramid PDS is always improving and evolving. Here is how we stack up against the latest competition.

Metric Pyramid Others
Spot Rate 1000Hz 400Hz
Data Rate 10,000Hz+ 1,000Hz
Beam Current 1,000nA+ 300nA
Resolution 0.1mm 0.1mm
Magnetic Slew 250μs >1000μs
Architecture Modular Modular
Supply Chain Single Source Multiple
Octopole Render

Scanning Magnetics

Magnets are often the bottleneck of a delivery system.

  • Unique - all in house designs
  • Fast - 250 microsecond 6mm steps
  • Precise - closed loop feedback on field
  • Compact - fits in tight gantries


High-speed Pencil Beam X/Y Scanning Magnet

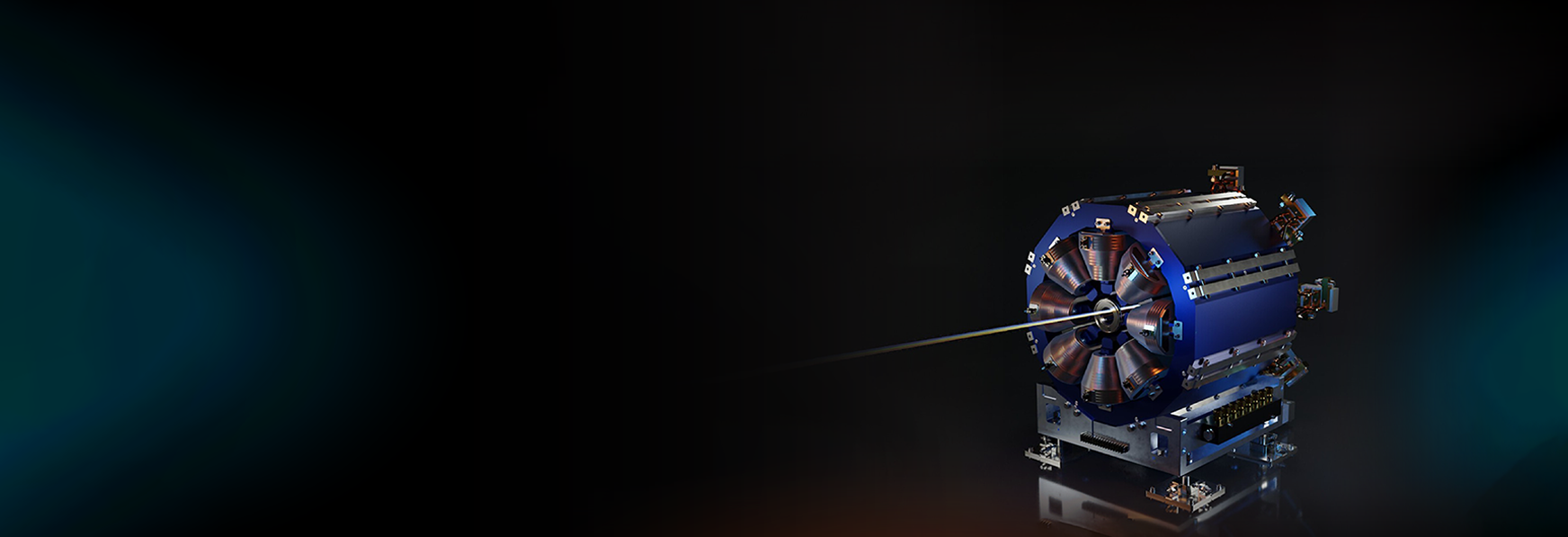

Octopole Product Render

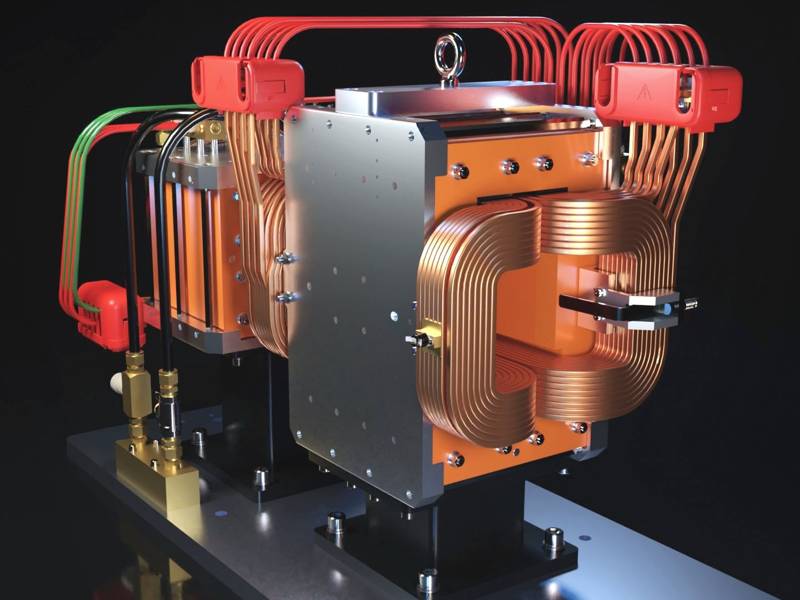

Octopole Compact Scanning Magnet for Particle Therapy

IC64-6 Render

The Gold Standard

Ion chambers offer an ideal mix of radiation hardness and repeatability.

  • Reliable - Ultra-thin gold electrodes
  • High Resolution - Down to 1mm strips or pixels
  • Uniform - Highly planar films
  • FLASH Ready - Recombination narrowed
IC128-25 Render

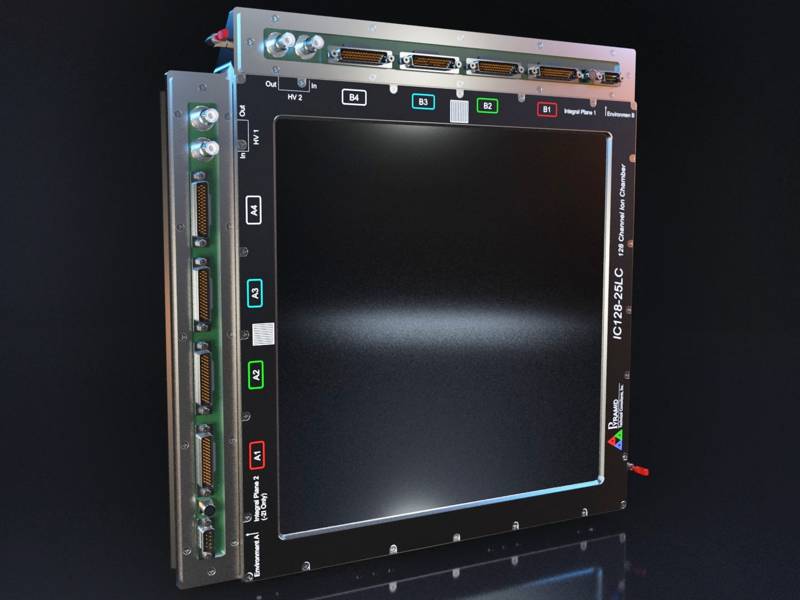

128x128 Strip Transmission Monitor Ion Chamber with Dose Plane

IC64-6 Render


64x64 Strip Transmission Ion Chamber

Dose Rack

Precision Dosimetry

Reliable and fast dosimetry with real time beam QA during treatment.

  • Fast - 5kHz or greater sample rate
  • Quiet - Low noise analog front ends
  • Programmable - Easy configuration target dose
  • Future Proof - Beam-always-on and FLASH
I128 Render

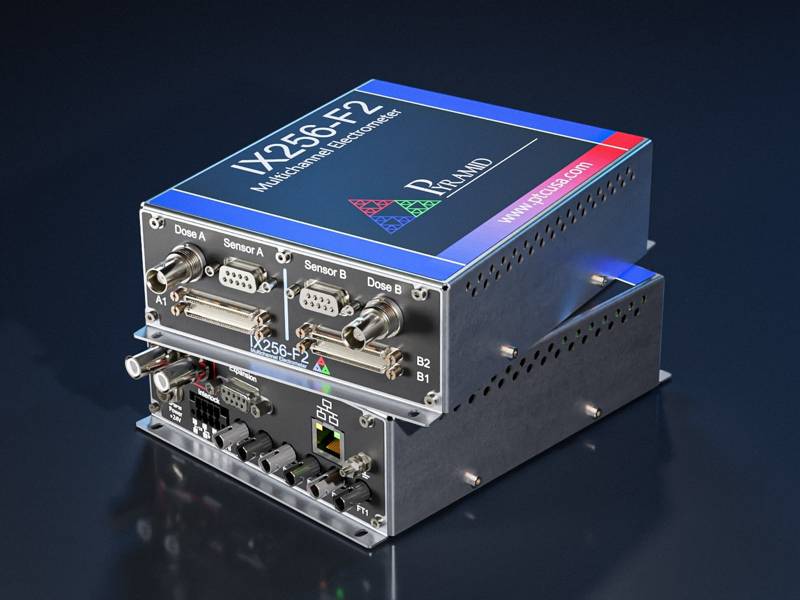

128 Channel Charge Integrator Digital Electrometer



64 + 1 Channel Charge Integrator

Control Rack

Rapid Scanning Controller

Dedicated control units provide a solid platform for innovative delivery techniques.

  • Robust - Radiation hard fiber optics
  • Safe - Built-in hardware redundancy
  • Programmable - Dynamic run-time code
  • Proven - Used daily in esteemed facilities

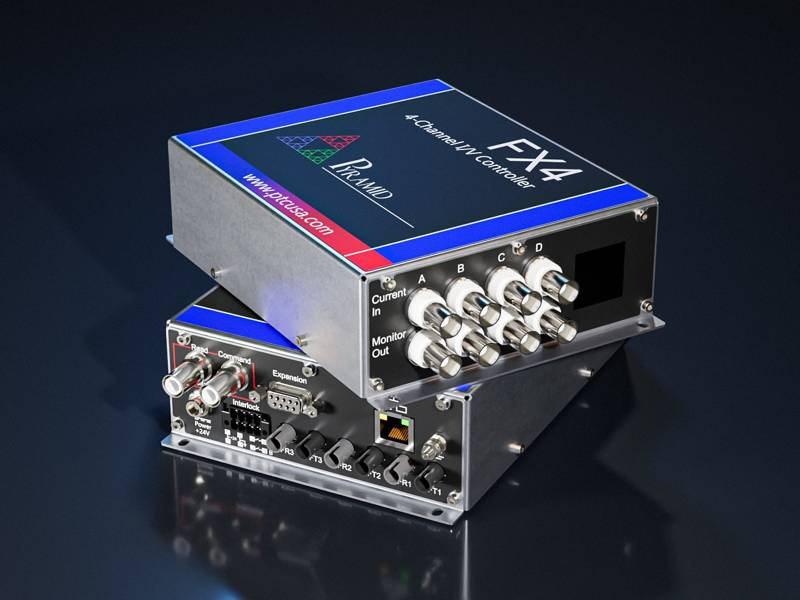

Real-Time Loop Controller


Control Room UX

The CM100 is a convenient tertiary counting dosimeter with an integrated control panel. The CM100 paved the way for other high-end control consoles and continues to excel with each iteration.

  • Touch screen and physical buttons
  • Key switch for hard authentication plus software verification
  • Audible and configurable dose indicator
  • Emergency stop with configurable relays for flexible workflows
  • Battery backup with up to 1 hour of run time
CM100 Render


Particle Therapy Control Console

MLFC Hex Energy Filter

Beam Quality Analytics

Pyramid offers a range of beam QA detectors. These instruments work with the PDS or can enhance an existing system.

  • Convenient - No water, vacuum, or HV
  • Patented - Measure full energy distribution
  • Accurate - Absolute charge measurement
  • FLASH Ready - Massive beam current range
MLFC-128 Render

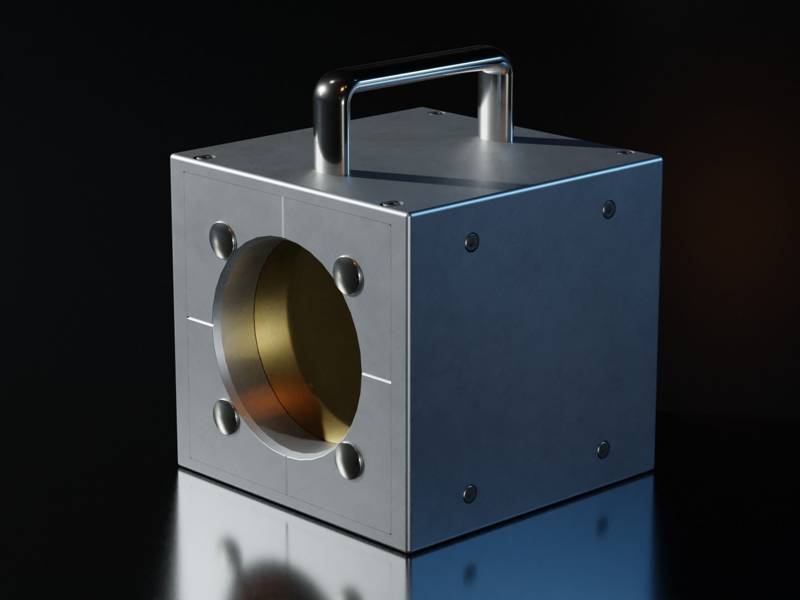

Multi-Layer Faraday Collector for Particle Energy Measurement



Faraday Cup Beam Collector for Particle Therapy QA and Diagnostics

Laser Table

Vertical Expertise

Pyramid designs, develops, and manufactures all our own detectors, electronics, and software. We cut through the noise and deliver products that work from day one.

  • Honest - Single source of truth when problems arise
  • Simple - Consolidated supplier interactions
  • Custom - Solutions for your requirements
  • Personal - From physics to software, real people ready to talk
