Ion Chambers

Pyramid's transmission ionization chambers are designed to provide high-precision measurements of ionizing radiation in proton and heavy ion therapy applications. With advanced electrode coating and patterning, precise strip and pixel patterns enable accurate position readout. The chambers are available in a range of sensitive areas and electrode gaps, making them adaptable to different system geometries and beam currents.

Ideal for proton therapy dose and beam position monitoring, our ionization chambers are the preferred choice due to their robustness, gain stability, low material budget in the beam path, and large continuous sensing areas.

IC64-6 Render

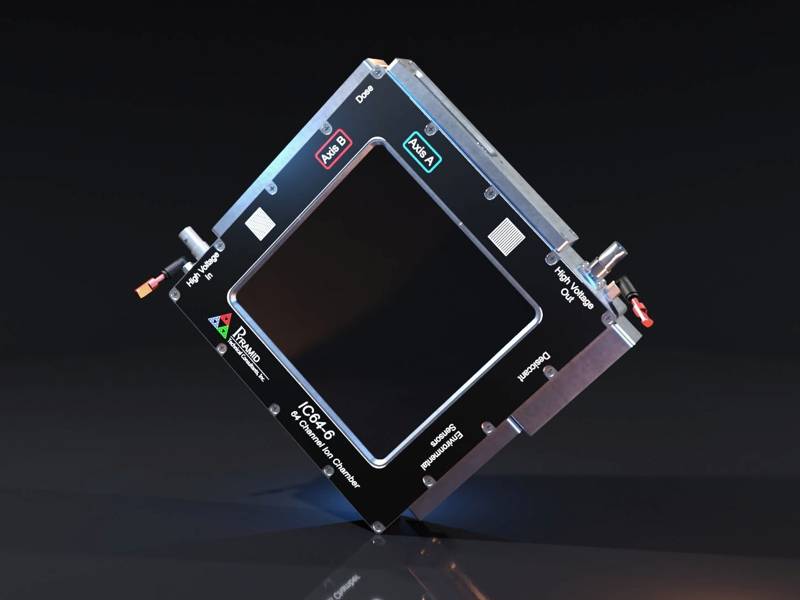

IC64-6

64x64 Strip Transmission Ion Chamber

IC128-25 Render

IC128-25

128x128 Strip Transmission Monitor Ion Chamber with Dose Plane

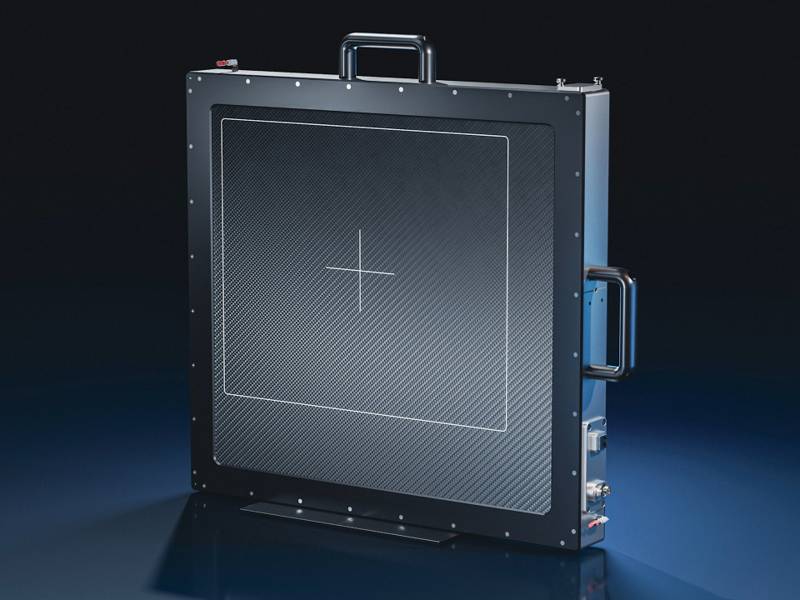

IC256-45 Render

IC256-45

256 Strip QC Ion Chamber

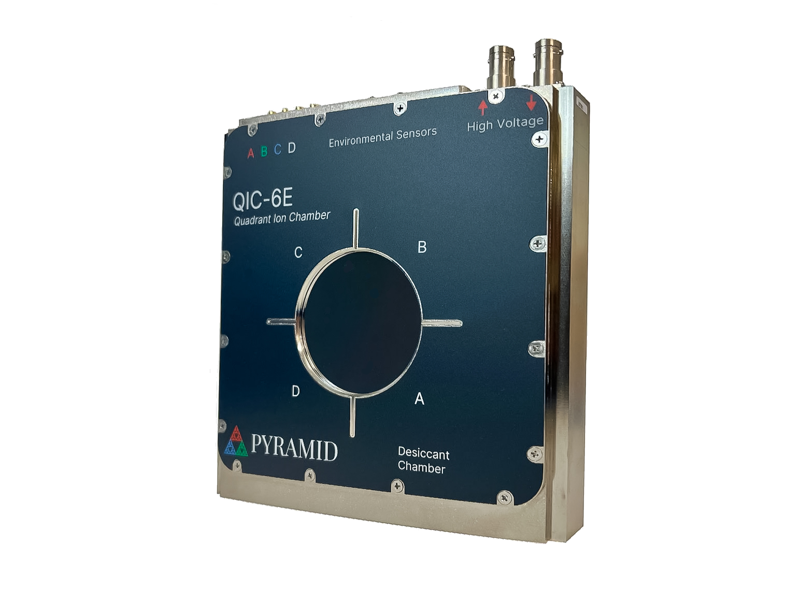

QIC-6E

QIC-6E

Ultra-low WET Quadrant Transmission Ionization Chamber

IC64-16 Render

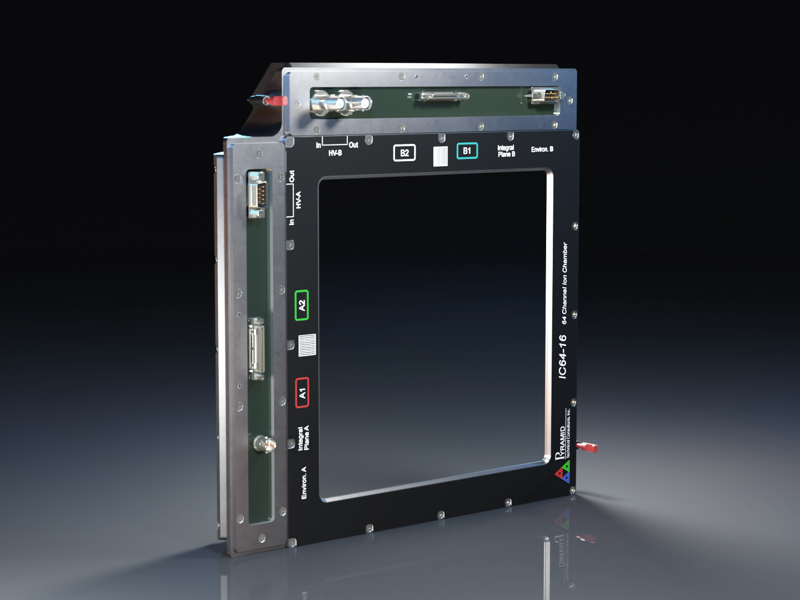

IC64-16SG

64 Strip Transmission Small Gap IC for Flash Therapy

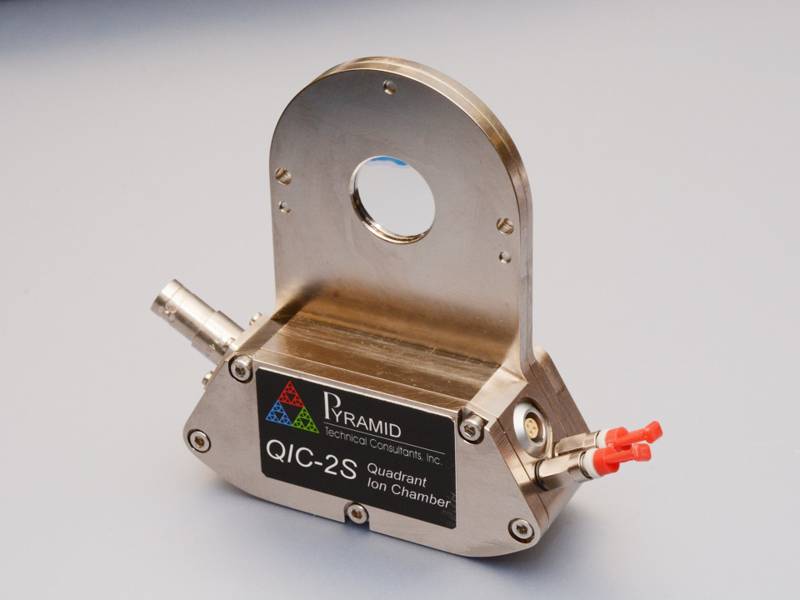

QIC-2S

QIC-2S

Mini Quadrant Ion Chamber

PX3 Render

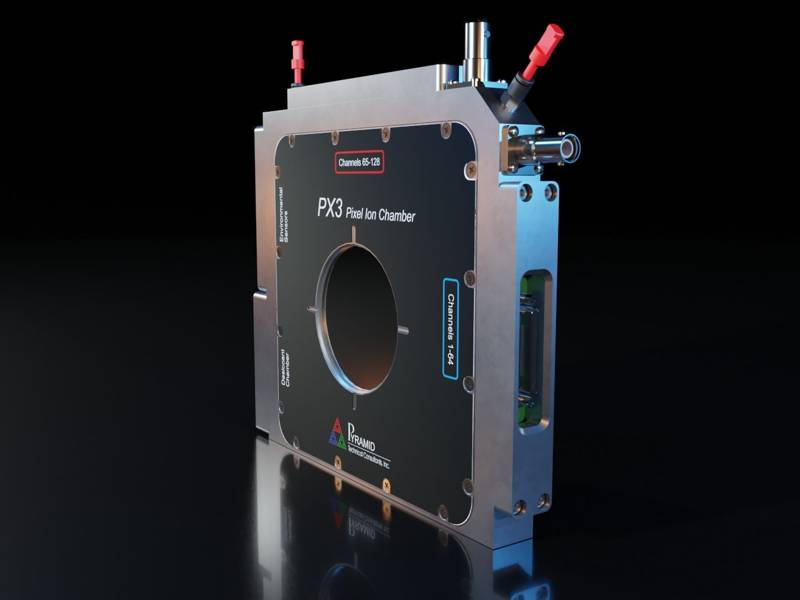

PX-3

120 Pixel Transmission Ion Chamber

IC16-5

IC16-5

16x16 Strip Transmission Ion Chamber

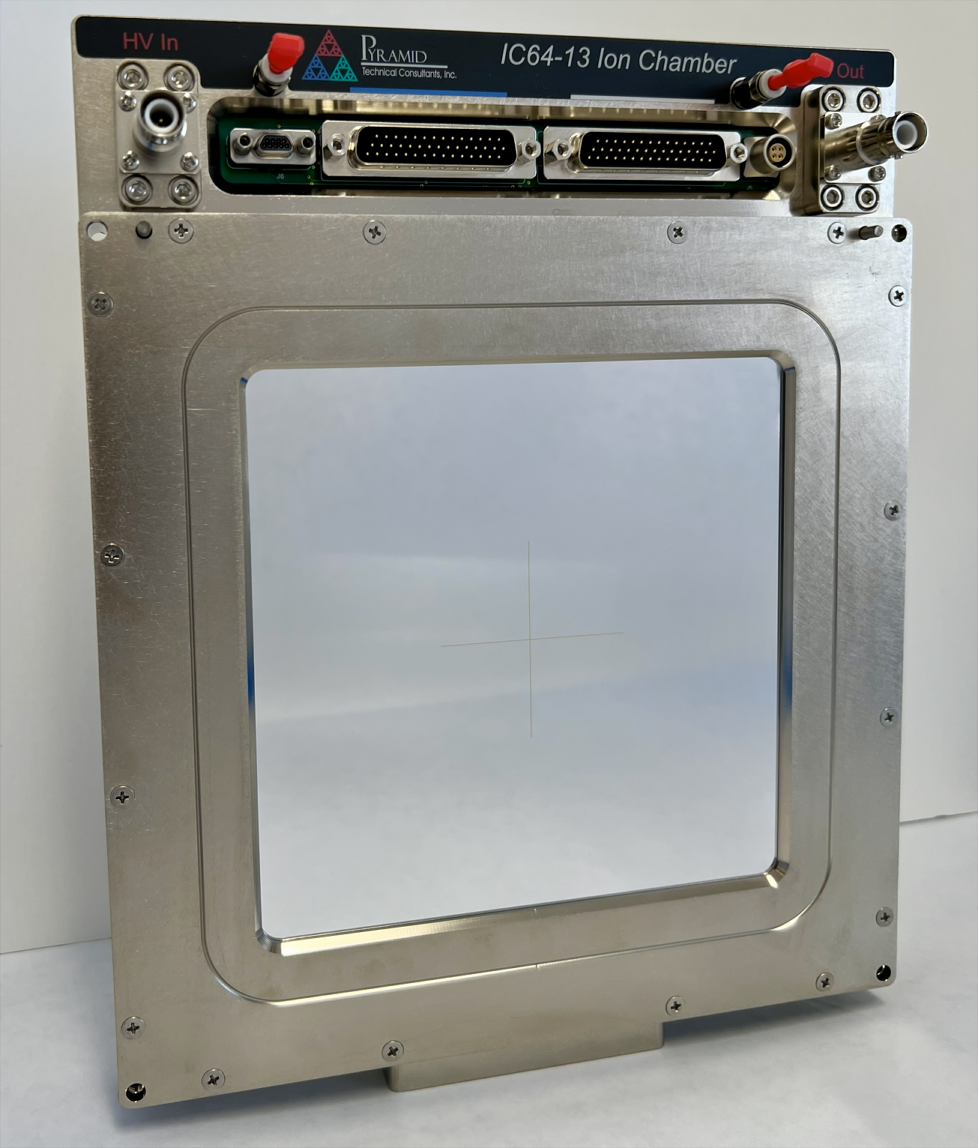

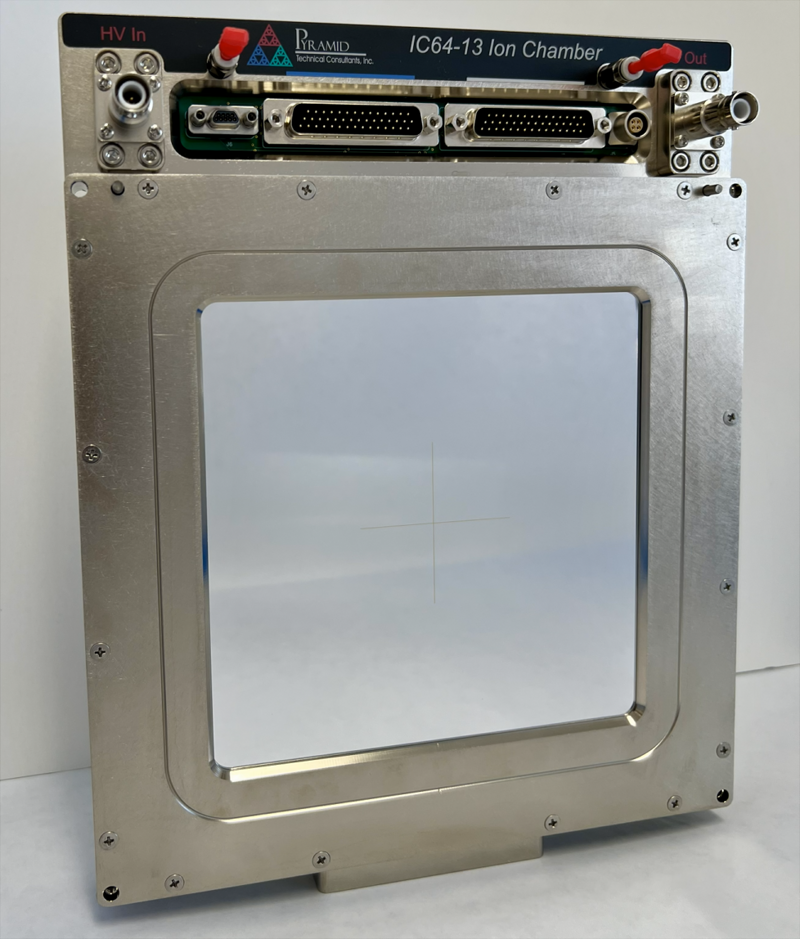

IC64-13

IC64-13

64 Strip Transmission Ion Chamber

BPM16-38 Render

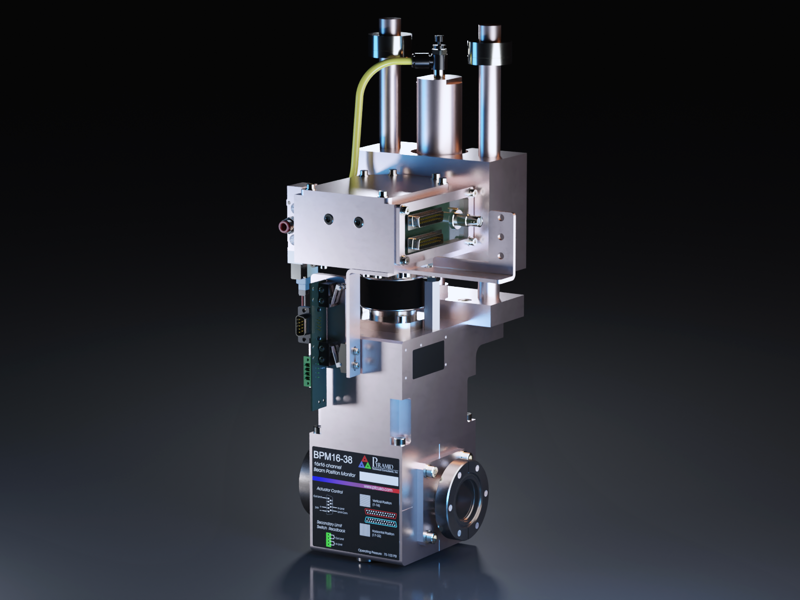

BPM16-38

Beam Position Monitor Gantry Compatible Strip Ionization Chamber

IC32-6

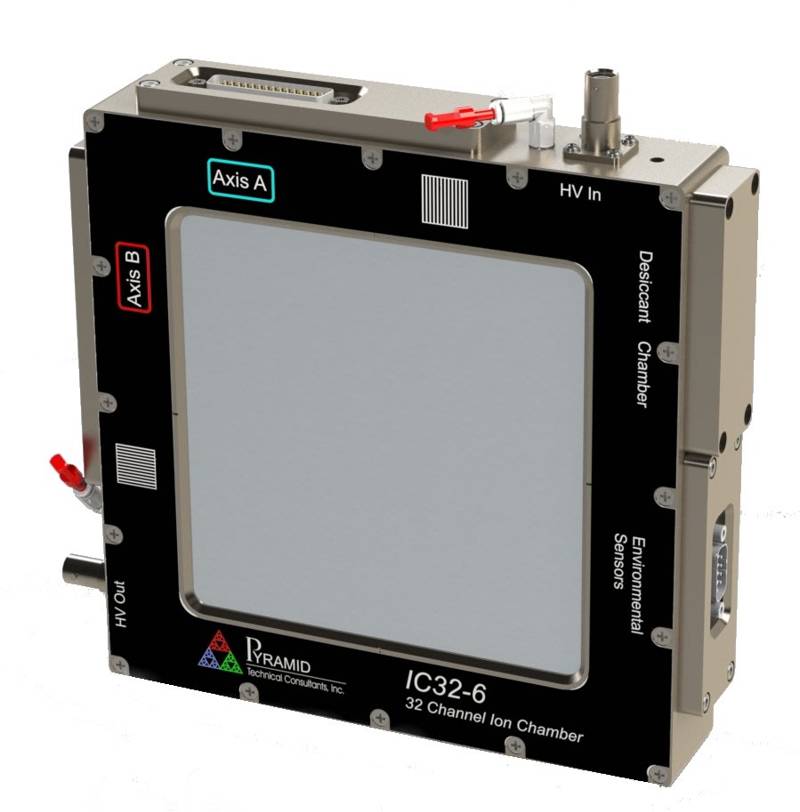

IC32-6

32x32 Strip Transmission Ion Chamber

PX-2

PX-2

120 Pixel Ion Chamber

PX1 Closeup

FLASH Ready

Flash therapy stands as a breakthrough in radiation therapy. Our commitment centers on delivering researcher-focused, state-of-the-art Flash therapy instruments, prioritizing accessibility and promoting collaboration within the industry.

For expert guidance and partnership opportunities in upcoming radiation therapy endeavors, engage with our dedicated engineering and sales team team today.

Hand testing IC

Expertly Built

Electrodes etched with unique laser technology. Assembled and tested by highly skilled technicians in our USA facility.

  • Rigorously tested beyond the operating range for uniformity
  • Tested with real radiation sources
  • White glove treatment from start to finish
  • Full documentation provided for each instrument
