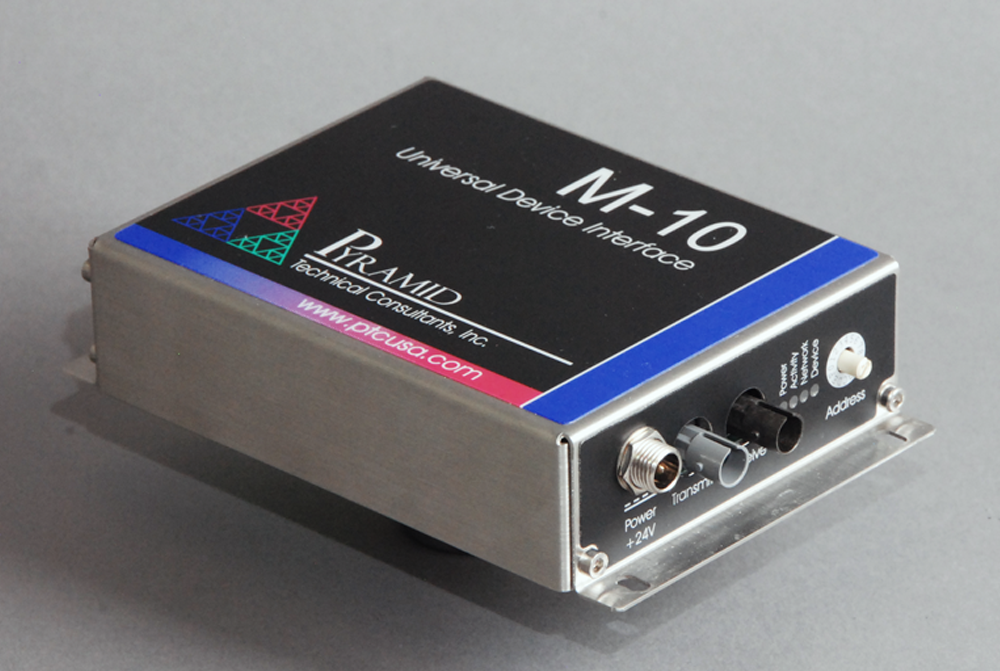

M10

2x Analog 4x Digital GPIO


Features

  • High resolution and speed, compact package
  • Two16 bit bipolar DACs with low transition transients
  • Two 16 bit bipolar ADCs
  • Four TTL digital outputs
  • Four TTL digital inputs
  • Fiber-optic interface
  • M10C version with 0 to 20 mA current output
  • Built-in configurable analog slew rate control

Applications

  • General power supply control
  • Waveform generation for wideband power supplies
  • Remote control across voltage barrier
  • Beam scan magnet control

Fiber-Optic Communications


Measurement data is transmitted through state-of-the-art fiber-optic cables. The benefits are numerous compared to other forms of data transmission.

  • Fiber-optics are immune to electrical interference
  • Minimal attenuation of light through fibers
  • Fast messaging over enormous distances
  • Radiation hard fiber materials








Control Systems


Pyramid devices are modular and pefect for distributed control systems. Easy to use software and networking make prototyping and integration rapid. Pyramid provides long term customer support and high reliability for final production systems.

Our devices can tolerate high levels of HF, RF and transient electrical noise. The real time fiber optic communications between controllers and front-end devices are completely immune to electrical interference. Fiber optics can also span voltage gaps of hundreds of kilovolts. An example application is control of the power supplies in the the high voltage terminal of an accelerator ion source.
