T1

Magnetic Field Probe

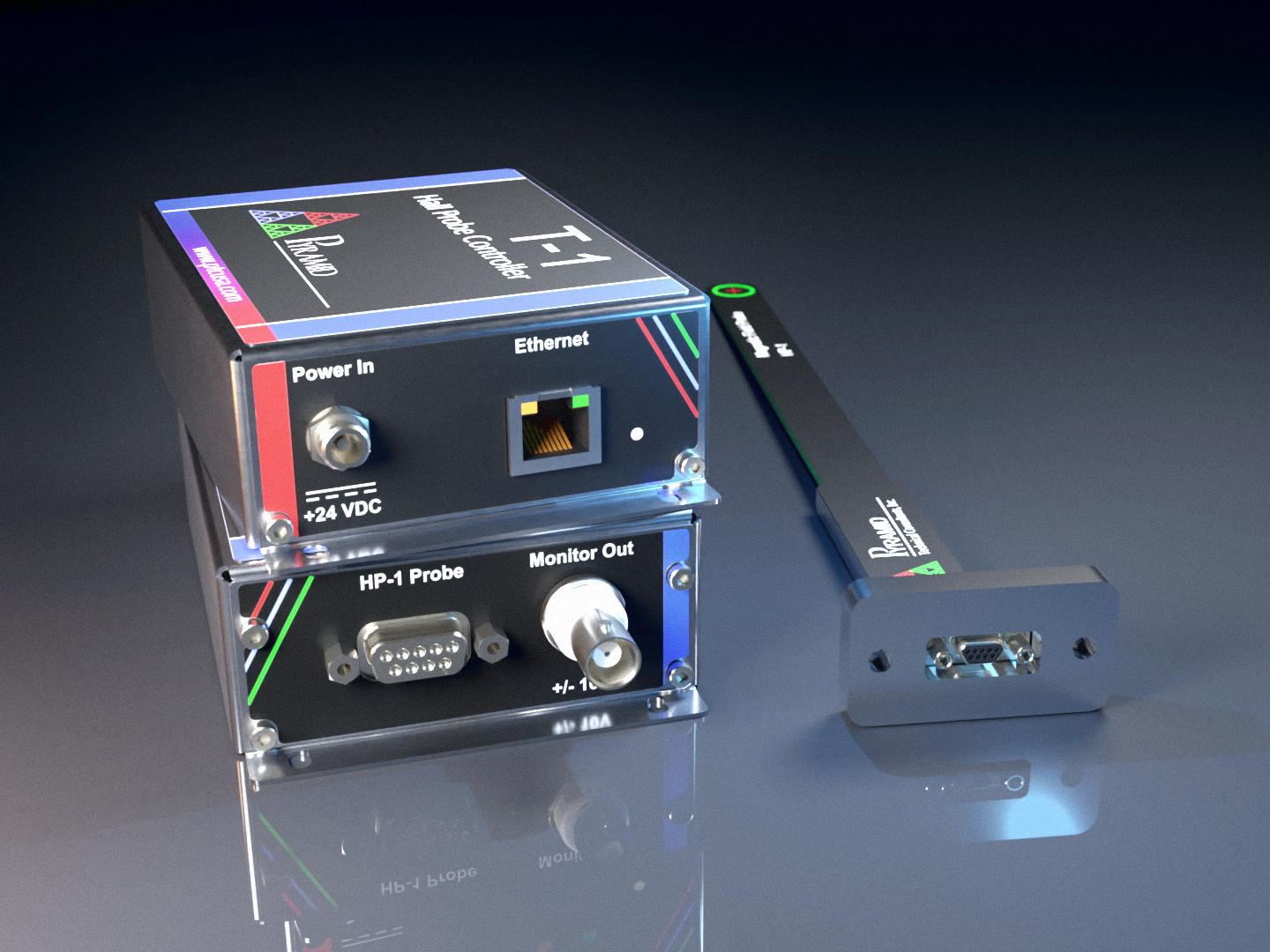

The T1 wraps the complexity of measuring magnetic fields into a small package. Interchangeable and radiation resistant probes make it perfect for ion source applications. The simple Ethernet or analog interface makes it ideal for system architects.

Features

  • Calibrated BNC analog monitor +/-10 Volt output
  • Multiple measurement ranges from 700 to 28k Gauss
  • Configurable sampling rate from 1Hz to 25kHz
  • Excellent noise characteristics: 20mG@1Hz, 50mG@10Hz, 120mG@60Hz
  • Ethernet data stream for full 25kHz data at 1kHz update rate
  • Dynamic temperature correction
  • User zeroing via GUI or programmable API

Applications

  • Monitoring magnetic beam lines
  • Automated magnet manufacturing
  • Monitoring accelerator ring magnets

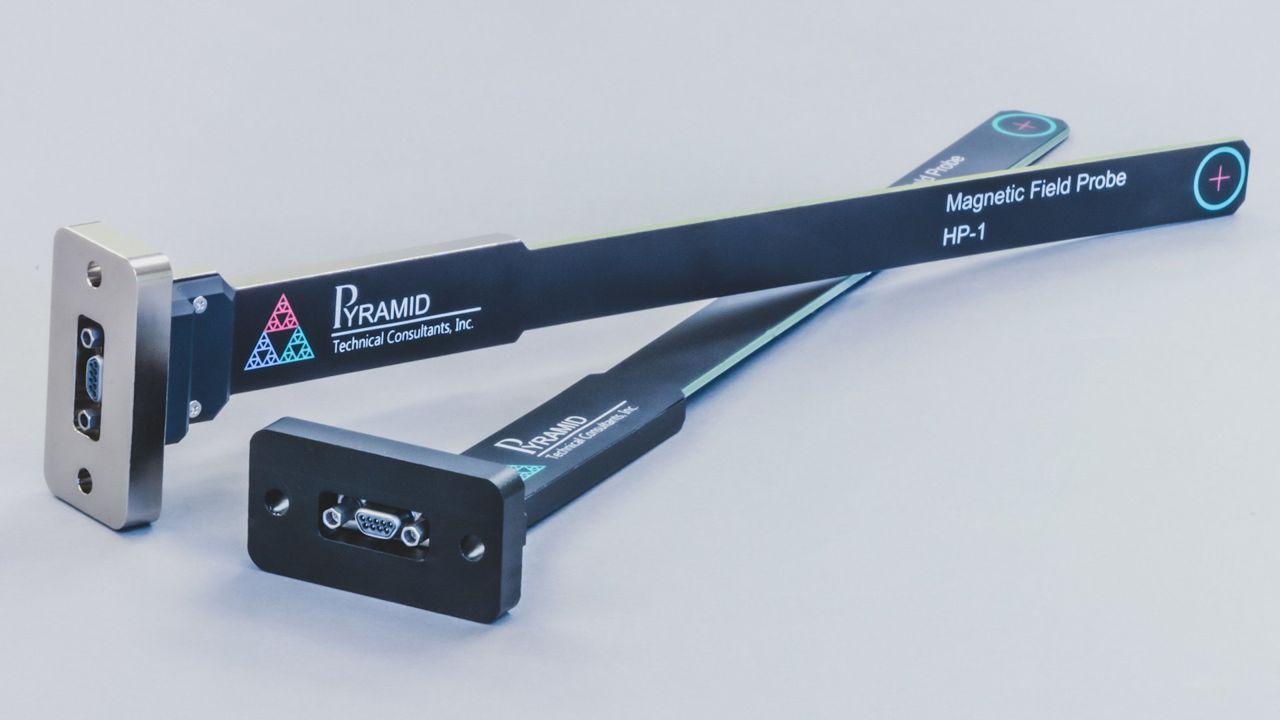

HP1 Hall Probe


  • Radiation resistance suitable for accelerator environments
  • Integrated temperature sensor used for dynamic correction
  • Integrated precision gain amplifier
  • Integrated radiation resistant calibration memory
  • Capable of measuring fields as low as 0.1 Gauss and as high as 2.8k Gauss (2.8 Tesla)
  • Low noise and high accuracy traceable to NMR standards
  • Designed for DC or AC signals
  • Optional 3D printed custom housing to fit any magnet

Modern Software Package


  • Runs on the industry proven QNX real-time operating system for unmatched reliability and performance
  • Integrated JSON HTTP or Websocket API for data collection and control
  • Built in EPICS server with PVs for all available IO
  • A powerful web GUI with plotting and data collection capabilities compatible with all modern browsers
  • Universal Plug and Play for easy network discoverability
