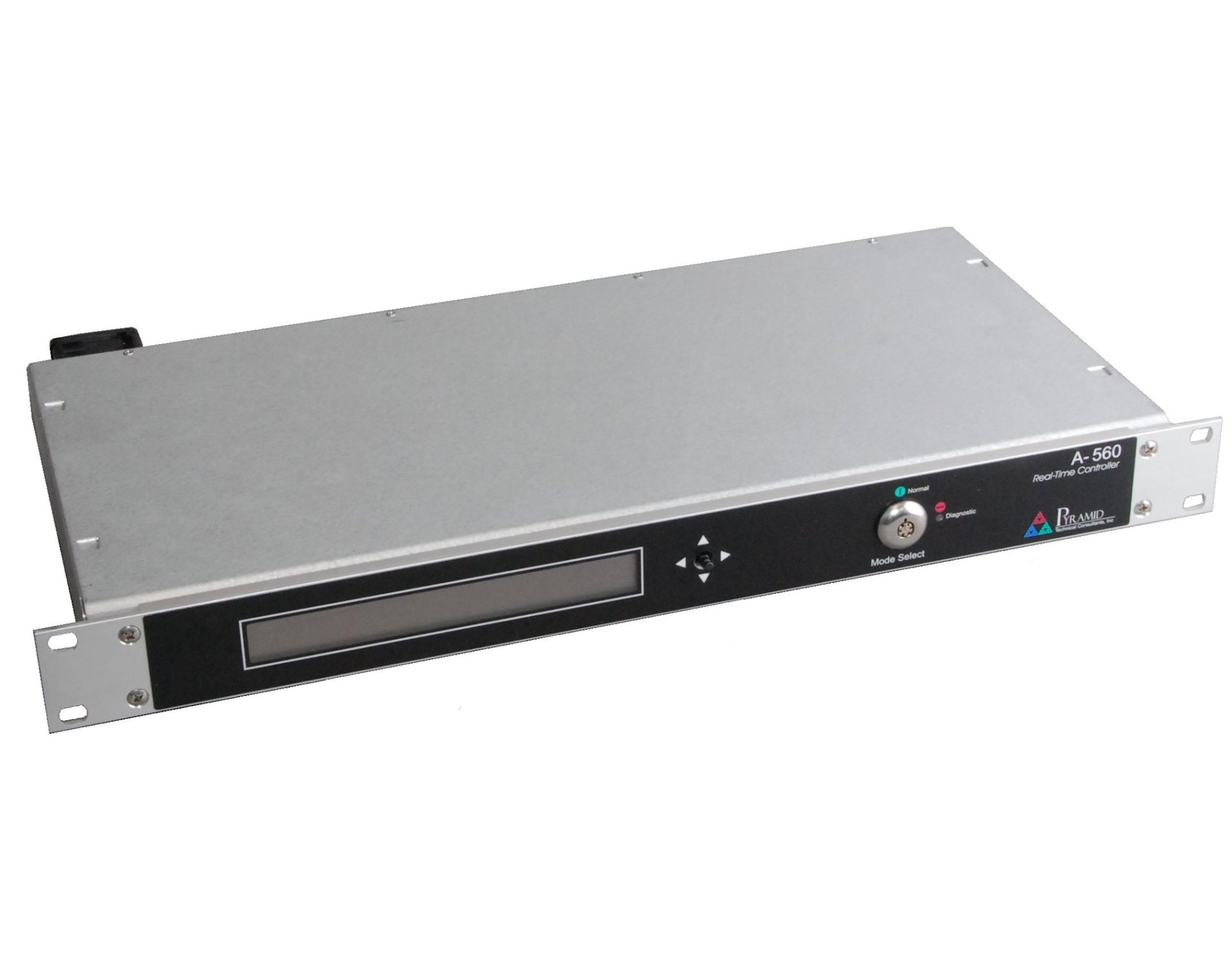

A560
Real-Time Loop Controller
Features
- Ethernet interface supporting TCP/IP and UDP
- Allows over 100 devices to be connected to a standard PC through a single Ethernet port
- High performance on-board A60 processors and memory for data buffering and real-time calculations
- Built-in hardware interlock system for safety-critical systems

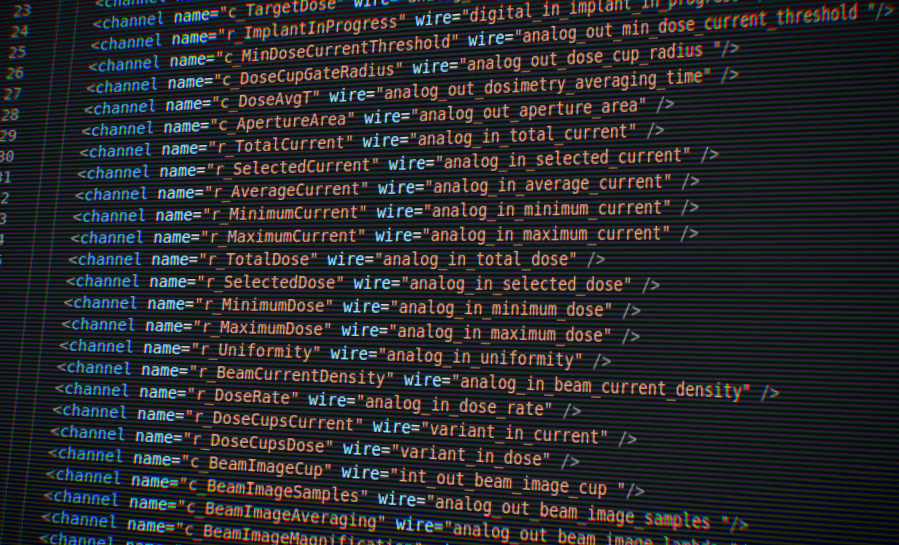

- xml scripting allows coordinated data output and input across multiple devices
Applications
- Applications that require real-time deterministic control of multiple distributed devices and/or realtime data processing
- Applications that require robust safety interlocking
- Large-scale, high-performance fiber optic loop systems
- Data acquisition and control systems for noisy environments
- Data acquisition and control systems that must communicate across high-voltage gaps
Fiber-Optic Communications
Measurement data is transmitted through state-of-the-art fiber-optic cables. The benefits are numerous compared to other forms of data transmission.
- Fiber-optics are immune to electrical interference
- Minimal attenuation of light through fibers
- Fast messaging over enormous distances
- Radiation hard fiber materials
Buy Now
I3200
32-Channel Charge Integrator
M10
2x Analog 4x Digital GPIO
F100
Fast Digital Electrometer
H20
2x Magnetic Field Probe
M40
16x Analog 16x Digital GPIO
IC101
Charge Integrating Electrometer
H10
Single Channel B and Bdot Probe
N2400
24x Pneumatic Actuator Controller
I200
2x Charge Integrator
B10
Digital I/O Interface
Control Systems
Pyramid devices are modular and pefect for distributed control systems. Easy to use software and networking make prototyping and integration rapid. Pyramid provides long term customer support and high reliability for final production systems.
Our devices can tolerate high levels of HF, RF and transient electrical noise. The real time fiber optic communications between controllers and front-end devices are completely immune to electrical interference. Fiber optics can also span voltage gaps of hundreds of kilovolts. An example application is control of the power supplies in the the high voltage terminal of an accelerator ion source.
Proton Therapy
Proton therapy is well established for the treatment of localized cancer tumors, especially when there are vital organs close by. This healthy tissue sparing makes it the method of choice for maintaining quality of life and especially for treating children. The proton beam delivery is fast and painless.
Proton therapy centers worldwide use Pyramid sensors, electronics, and software. Pyramid offers products for complete systems, sub-systems, or components. For more information see our Pencil Beam Scanning Brochure
