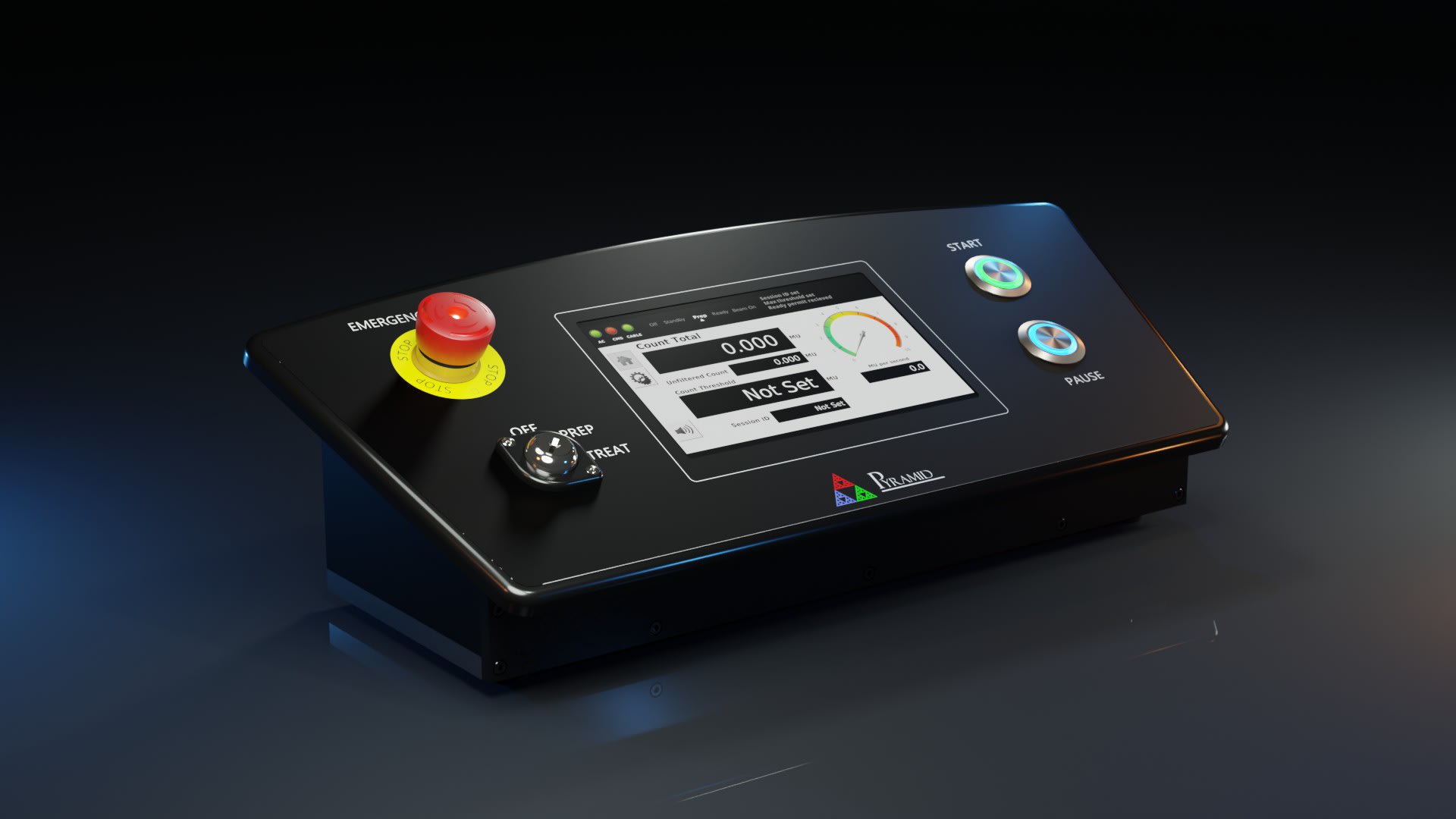

CM100 - Particle Therapy Control Console

The CM10 is a reliable solution designed to meet the stringent requirements of IEC 60601-2-64 and IEC 60601-2-43 for proton therapy and BNCT control rooms. This highly integrated system offers a dependable, redundant dose tracking and display mechanism, ensuring accuracy and stability even in the event of power outages, thanks to its battery backup and nonvolatile storage.

Engineered for Pencil Beam Scanning, the CM100 counts doses for individual beamlets within each layer, while its hard-wired interface provides seamless control over treatments, including arming, starting, pausing, and stopping. For enhanced safety and security, the CM100 features an audible dose rate indicator, an integrated key switch, and an emergency stop button.


  • Redundant dose measurement via I128 q-pulses
  • Component of an independent beam termination system
  • Non-volatile dose record storage
  • Key switch and physical buttons for precise irradiation control
  • Audible dose delivery indication
  • Emergency stop button for added safety
  • User-friendly color LCD touchscreen


  • Particle therapy treatment control room console
  • BNCT treatment control room console

Modern Software Package

  • Rely on the QNX real-time OS for exceptional performance and stability.
  • Dependable data collection and control with JSON HTTP/WebSocket API.
  • Comprehensive input/output through the robust, embedded EPICS server.
  • Advanced web GUI for real-time data visualization and configuration.
  • Enables flexible scripting and integration for a variety of programming languages.
FC 75

Regulatory Standards

Pyramid Technical Consultants, Inc. is an ISO 9001:2015 (Certificate No. FM 591212) and ISO 13485:2016 (Certificate No. FM 637614) registered company.

Pyramid products are CE marked for compliance with the Low-voltage and Machinery Directives. Pyramid manufacturing always uses RoHS-compatible materials and processes.

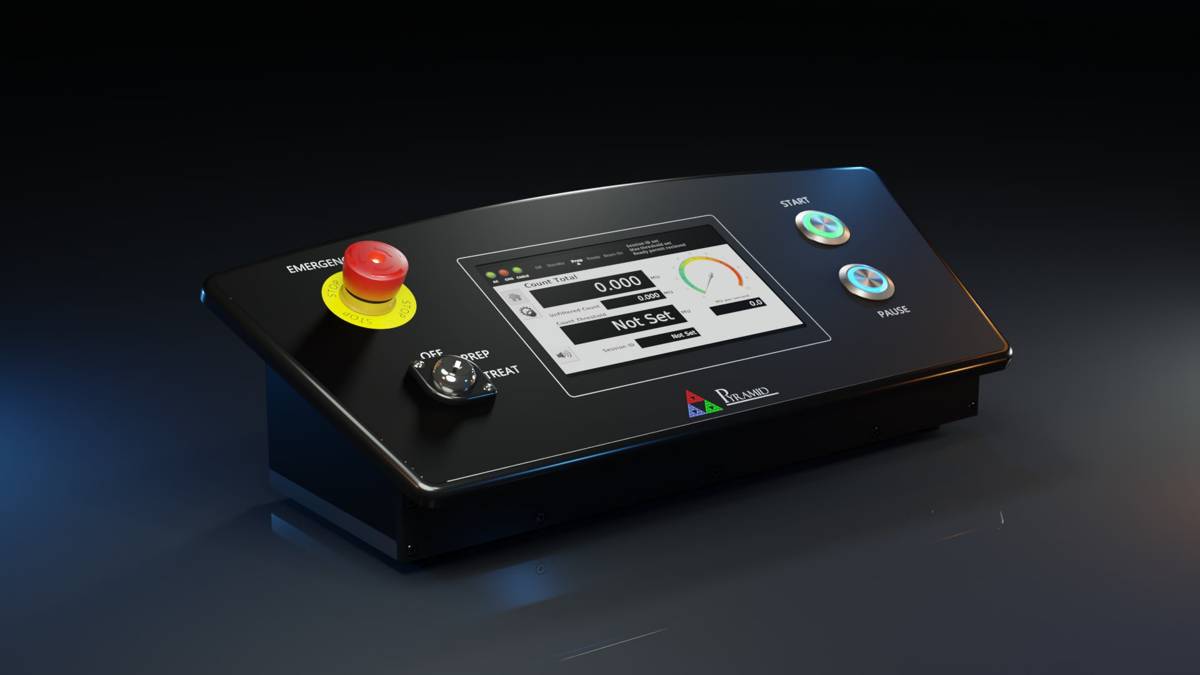

CM100 Render


Particle Therapy Control Console

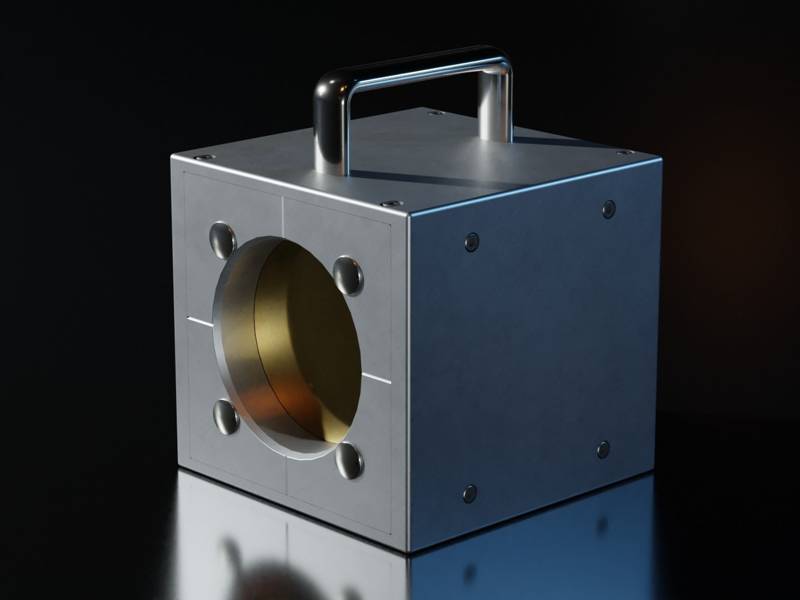

MLFC-128 Render


Multi-Layer Faraday Collector for Particle Energy Measurement

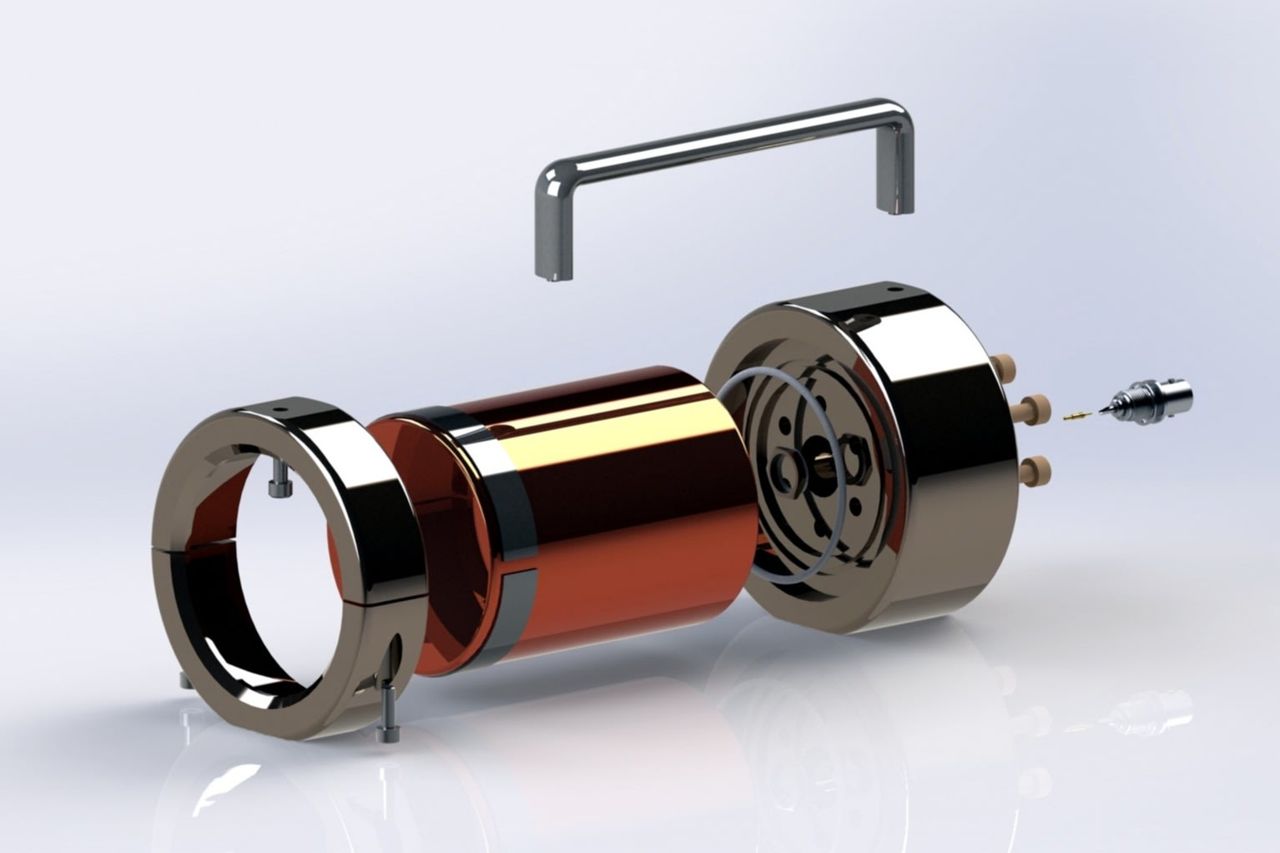

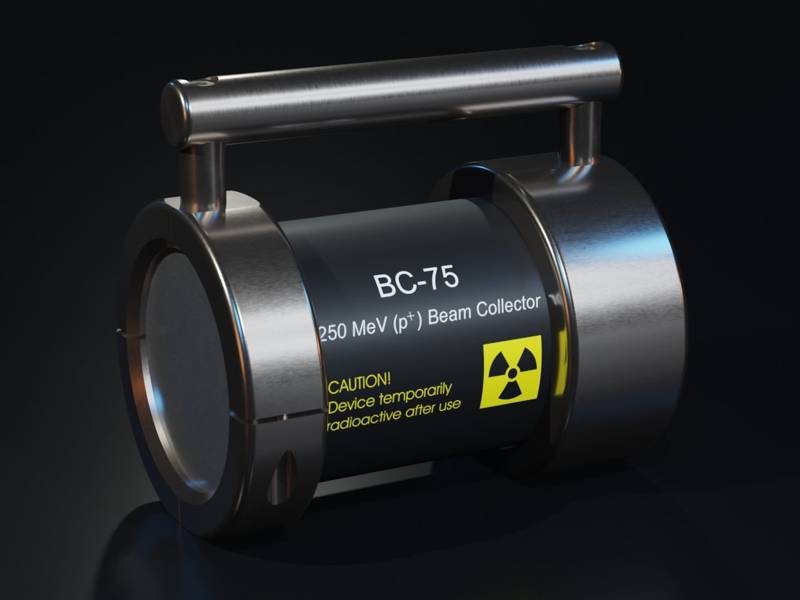

Faraday Cup Beam Collector for Particle Therapy QA and Diagnostics

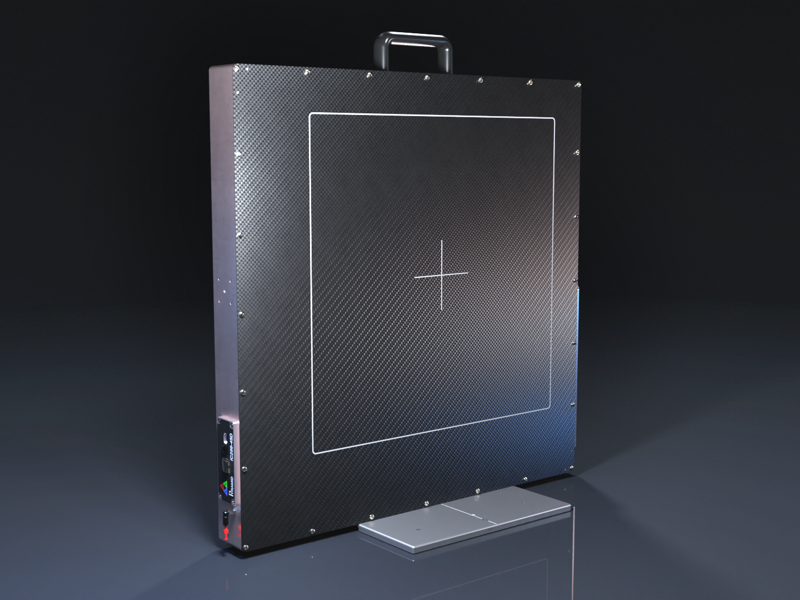

IC256-45 Render
