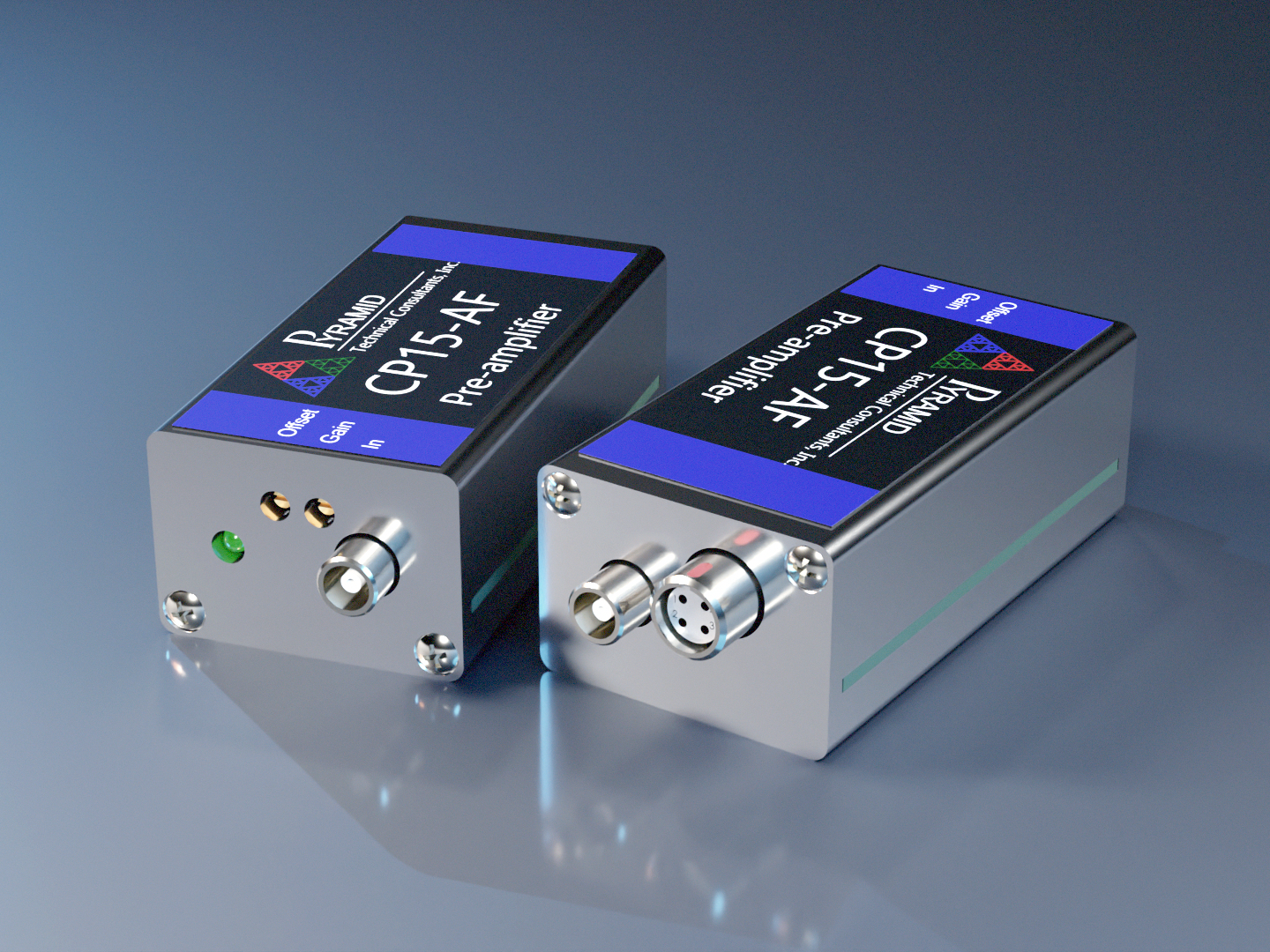

CP15 - DC-Coupled Pulse Pre-amplifier for Lanthanum Halide and Sodium Iodide Detectors
The CP15 is a compact and cost-effective pre-amplifier available in two versions. The CP15AF model is designed for use with sodium iodide scintillation detectors. It features built-in filtering matched specifically to photomultiplier-based NaI detectors. The CP15AL model is designed for use with the much faster LaCl3, LaBr3, YAP and plastic scintillation detectors. It features built-in filtering matched specifically to photomultiplier-based La halide detectors.
For energy spectroscopy applications, also consider the CR10. This is a fully-featured pulse amplification and shaping product available with a very wide selection of conversion gain, pulse shaping times and the option for baseline restoration see the CR10.
Pair the CP15 with the C400 high-speed pulse counter which supports up to four preamplifiers in any combination.
Features - CP15AF
- 1000 mV peak voltage pC-1 at maximum gain setting into 50 ohm
- Rise time 640 nsec, full width at 10% of maximum 3.6 µsec
- Optimized filtering for clean NaI detector pulses
- Very compact package about the size of a matchbox
- DC-coupled and 50 ohm matched
- Fine gain and offset adjustment pots
- Choice of inverting or non-inverting via jumper
- Lemo 00 signal in and out connectors
Applications - CP15AF
- Readout of sodium iodide scintillation/photomultiplier detectors
- Pulse counting applications
- Pulse height analysis applications
- Spectroscopy preamplifier
- Companion to the C400
Features - CP15AL
- 550 mV peak voltage pC-1 into 50 ohm at maximum gain setting
- Risetime <12 nsec, full width at 10% of maximum 25 nsec
- Optimized filtering for clean La halide detector pulses
- Very compact package about the size of a matchbox
- DC-coupled and 50 ohm matched
- Fine gain and offset adjustment pots
- Choice of inverting or non-inverting via jumper
- Lemo 00 signal in and out connectors
Applications - CP15AL
- Readout of lanthanum halide and other fast scintillation detectors
- Pulse counting applications
- Pulse height analysis applications
- Spectroscopy preamplifier
- Companion to the C400
