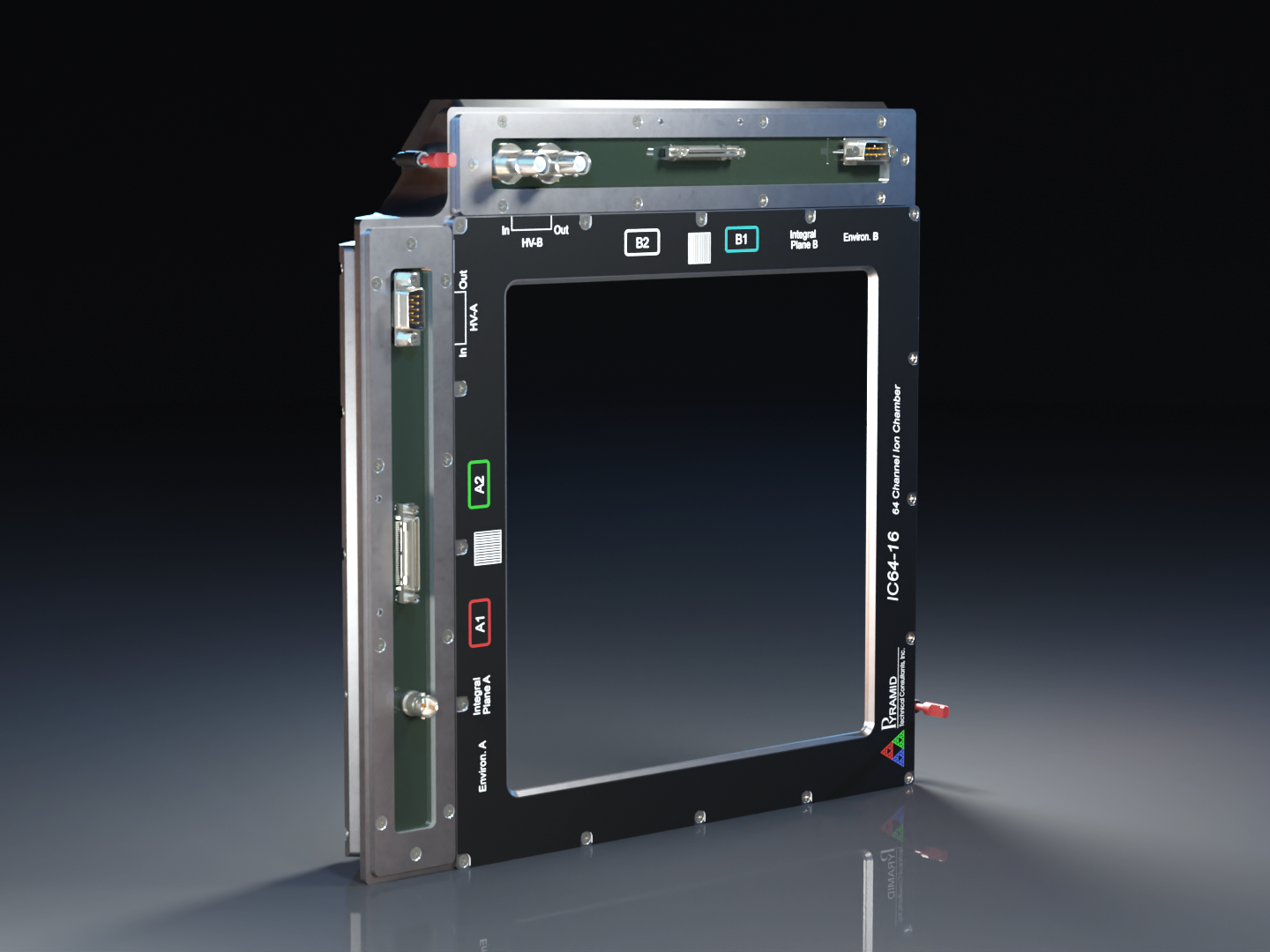

IC64-16

64 Strip IC with 2 Dose Planes


Features

  • 16 cm x 16 cm sensitive area with 2.5 mm pitch strips
  • 44 mm beamline insertion length
  • High voltage sense loopback
  • Dual independent dose planes
  • Standard HD44 Male connectors for strip readout
  • Standard DB9 Male connector for environment readout

Applications

  • Measured by I6400
  • Particle therapy scanned beam tracking and dosimetry
  • Pencil beam scanning control
  • General high energy ion beam diagnostics

Thin-film Strip Detector


Strip detectors have a balance between accuracy on beam position and noise levels. Our strip detectors offer the highest resolution and lowest noise on the market.

  • Laser-machined polyimide electrode substrates
  • Absolute minimal beam scattering
  • Radiation hard
  • High geometric precision
  • Gold plated readout electrodes

Integrated Environment Sensors


Our ion chambers include integrated sensors for environmental corrections. No need for costly and inconvenient external instruments.

  • Humidity sensor
  • Temperature sensor
  • Pressure sesnor
  • Replacable desiccant

Expertly Built


Electrodes patterned with unique laser technology. Assembled and tested by highly skilled technicians in our dedicated assembly facility.

  • Rigorously tested beyond normal operating range to ensure uniformity
  • Envirmonmental sensor measured against externally calibrated sources
  • Each ion chamber is fully retested after it has been opened
  • Real calibrated radioactive source is used as reference
  • Full test documentation can be provided for each individual instrument
