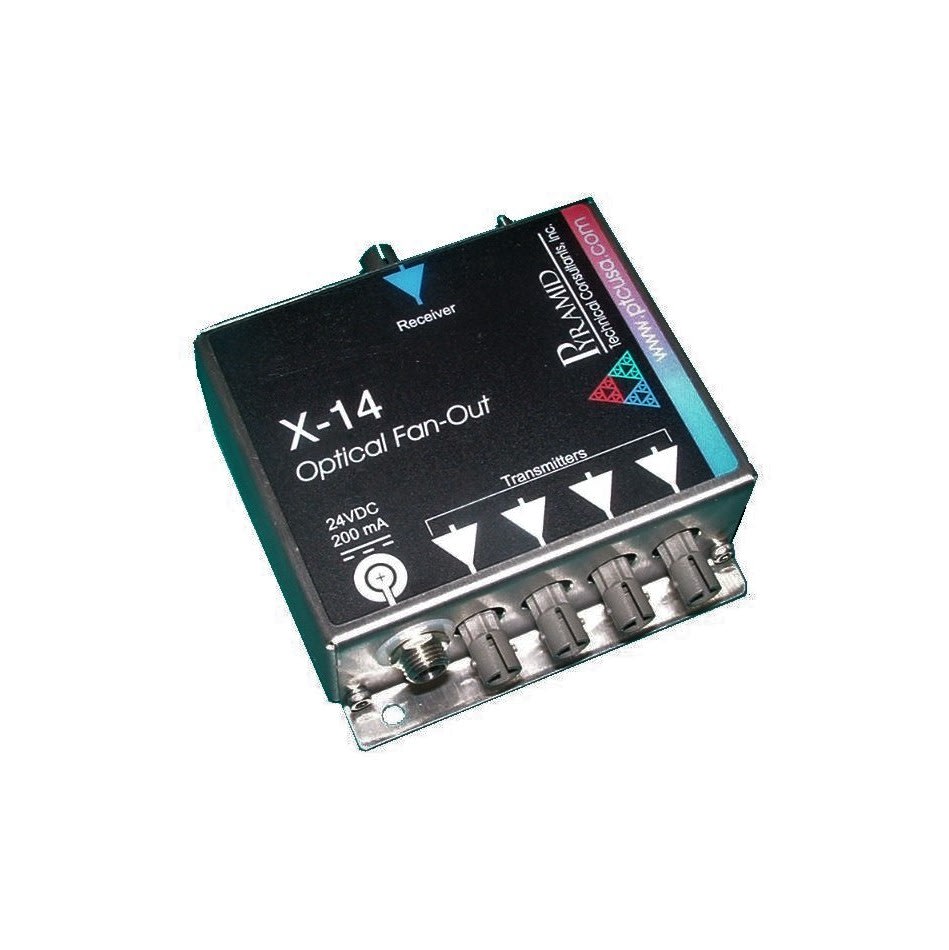

X14 - 1:4 Fiber-Optic Trigger Fanout

The X14 is a one-to-four fiber-optic fan-out type device. It receives a single optical level and repeats that signal to 4 separate outputs with minimal latency added. The X14 is intended to help system designers spread out a single trigger or synchronization signal to multiple destinations.

For unidirectional TTL to fiber applications that can drive 30mA the TF1 may be a simpler choice.

If your application requires bidirectional conversion see the X22 device.

Features

• 1:4 fiber-optic fanout
• ST type fiber-optic connectors
• Very low 150 nanosecond latency (130ns rising, 140ns falling)
• Robust stainless-steel chassis
• DIN rail mounting options
• Compact and cost-effective

Applications

• Trigger signal distribution
• Logic level distribution in electrically noisy environments
• High voltage optical isolation
