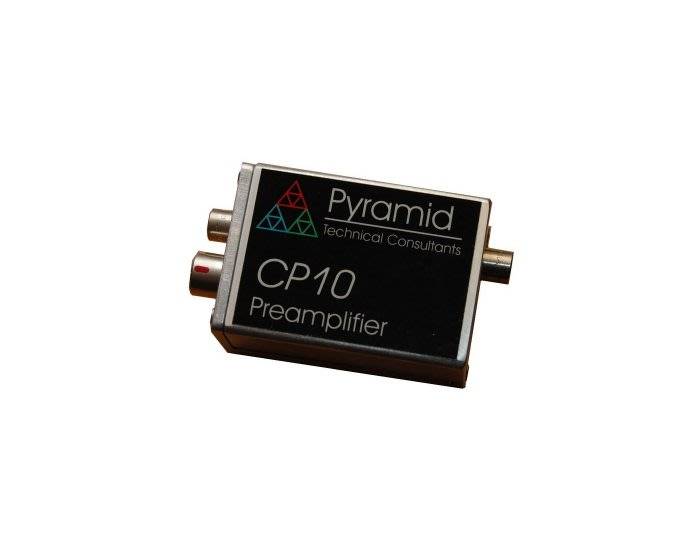

CP10 - Very Fast Pulse Spectroscopy Pre-amplifier
The CP10 is a compact and cost-effective pre-amplifier for use with fast pulse scintillation detectors or general-purpose pulse detectors. The CP10 comes in two major variants, the CP10-A, and CP10-B. CP10-A is optimized for fast halide crystals, LaCl3, LaBr3, and YAP scintillator/photomultipliers. The CP10-B is for Continuous-dynode electron multipliers (CDEM), plastic scintillators, and avalanche photodiodes (APD).
For sodium iodide scintillation see the CP15 pre-amplifier optimized for that detector type.
For a fully-featured pulse amplification, shaping, and baseline restoration see the CR10.
Pair it with the C400 high-speed pulse counter with built-in high voltage biasing for a complete solution.
This product is no longer recommended for new designs. See alternative products bellow or contact Pyramid for more information.
Alternative Products
CP15 - DC-Coupled Pulse Pre-amplifier for Lanthanum Halide and Sodium Iodide DetectorsFeatures
- All aluminum case, about the size of a matchbox
- DC-coupled, 50 ohm impedance input and output
- Lemo 00 coaxial connectors
Variant Comparison
| Specification | CP10-A | CP10-B |
|---|---|---|
| Gain | +32dB | +32dB |
| Rise Time | 30nsec | 8nsec |
| Bandwidth | 0-10MHz | 0-200MHz |
| Unity Gain | > 100MHz | > 900MHz |
| Noise | < 1mV RMS | < 2mV RMS |
Applications
- Fast pulse counting readout (matched for LaCl3 , LaBr3 and YAP crystals) (CP10A)
- Fast pulse counting device readout (matched for plastic scintillators, continuous-dynode electron multipliers) (CP10B)
- Fast pulse counting detector readout
