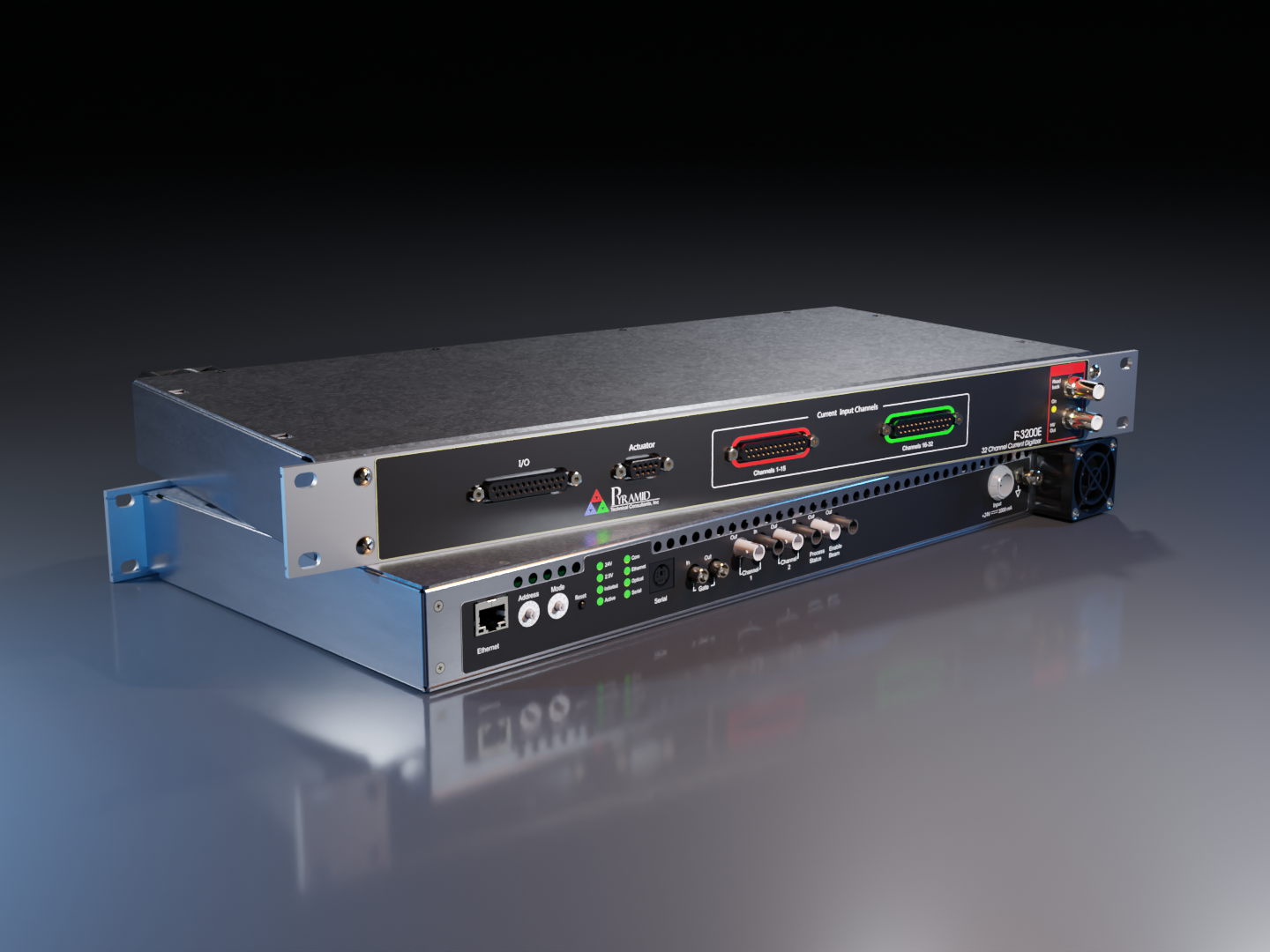

F3200E - 32 Channel Fast Digital Electrometer

Features

  • Thirty-two parallel multi-range current to voltage converter channels
  • Bipolar inputs, bandwidth DC to 250 kHz
  • Dynamic range <1 nA to 10 mA over four measurement ranges
  • Thirty-two 14 bit 1 MHz ADCs for fully parallel sampling
  • Integrated data buffering and communications
  • Multiple digital filtering options
  • Integrated high-precision calibration test sources covering all ranges
  • External calibration current input for calibration checking against accredited external current source
  • Optional integrated HV supply
  • Integrated digital I/O (for actuator solenoid control or similar applications)
  • Ethernet, fiber-optic or serial communications interfaces

Applications

  • Faraday cup arrays
  • Swept beam systems
  • Multi-segment photodiode arrays
  • Pulsed-beam ionization chambers
XMLSnippetFinal

IG2 EPICS Support

Integrate device data collection and configuration into an EPICS system, without writing a single line of code using IG2.

  • Runs on Windows and Debian Linux
  • Change PV names with simple XML configuration
  • Connect to multiple Pyramid devices at once
  • Add custom scale factors and offsets on a PV basis
  • Never have to recompile
  • Professional Pyramid support for bugs and features
