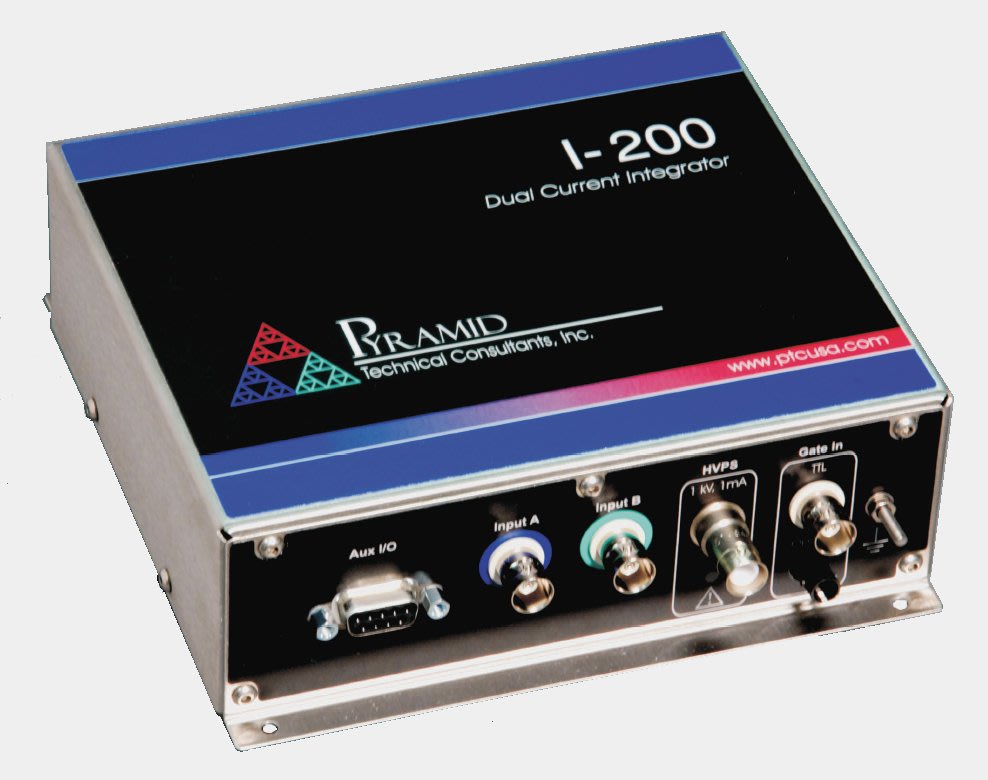

I200 - 2x Charge Integrator

Features

  • Two gated integrator channels
  • Dynamic range 0.1pA to 100 µA
  • Integrated digitization and communications
  • Integrated calibration test source
  • Multimode external trigger capability
  • Optional integrated PI controller for servo stabilization applications
  • Auxiliary I/O port

Applications

  • Ionization chambers
  • Two electrode beam position monitors
  • Photodiodes
  • Low current and charge measurement
  • With servo control option: Stabilization of double crystal monochromators for synchrotron beamline experiments by control of the crystal cage piezo motor amplifier Stabilization of beam position in charged particle or photon beamlines
HV emco

Integrated High Voltage

  • Avoids the need for a separate external HV supply.
  • Precise programmable voltage control.
  • Choice of polarity, positive or negative, and range up to 3000V depending on the product.
  • Shared ground with measurement electronics to eliminate ground loops.
  • Short circuit protection and redundant output voltage monitoring.
Fibers

Fiber Optics

Measurement data is transmitted through state-of-the-art fiber-optic cables. The benefits are numerous compared to other forms of data transmission.

  • Fiber-optics are immune to electrical interference
  • Minimal attenuation of light through fibers
  • Fast messaging over enormous distances
  • Radiation hard fiber materials
XMLSnippetFinal

IG2 EPICS Support

Integrate device data collection and configuration into an EPICS system, without writing a single line of code using IG2.

  • Runs on Windows and Debian Linux
  • Change PV names with simple XML configuration
  • Connect to multiple Pyramid devices at once
  • Add custom scale factors and offsets on a PV basis
  • Never have to recompile
  • Professional Pyramid support for bugs and features
XMLSnippetFinal

IG2

Configurable EPICS channel access server for G2 and G1 devices
