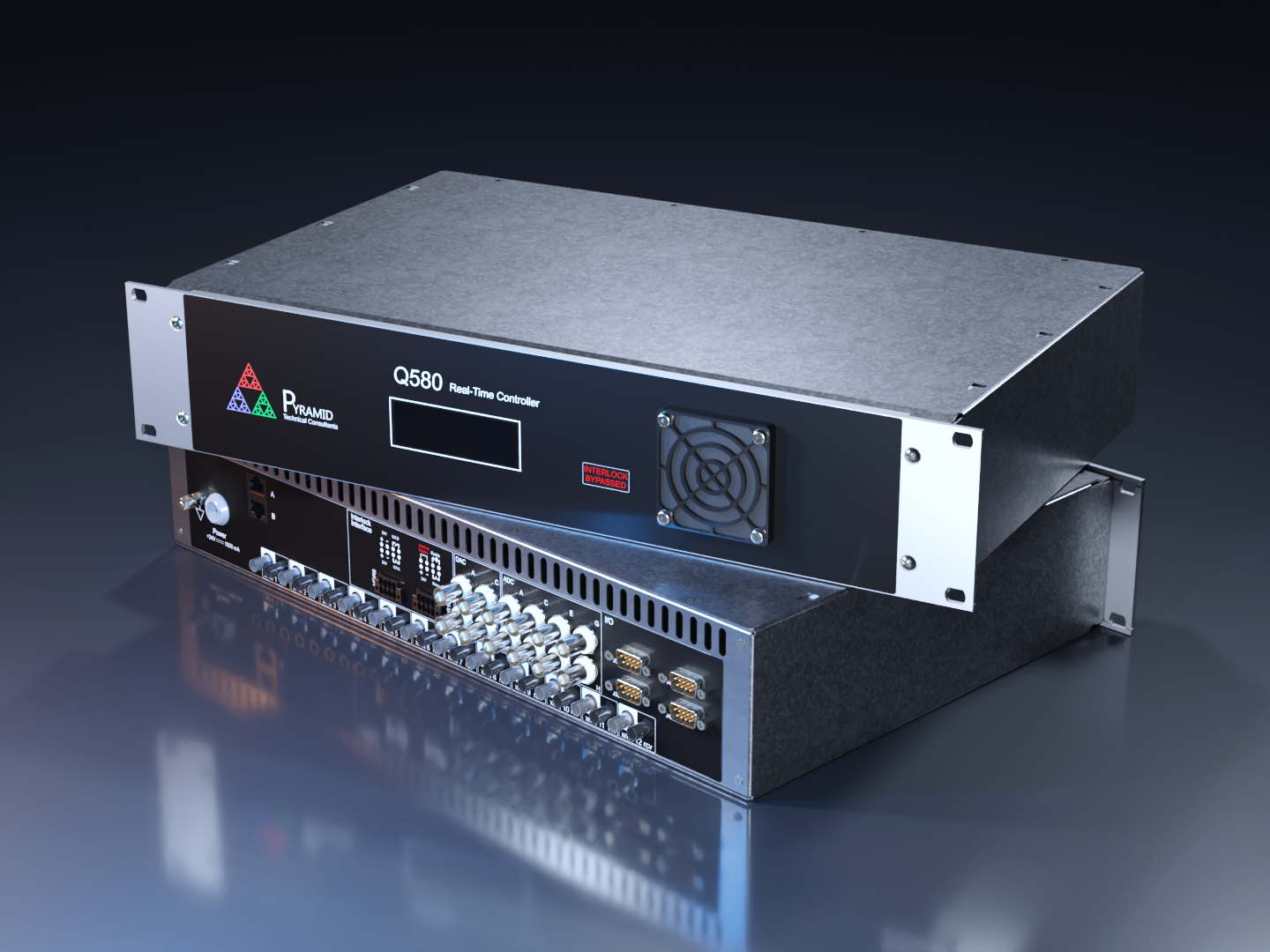

Q580 - High Speed Real-Time Loop Controller

The Q580 is a master controller for massively distributed control systems with real-time and high-reliability requirements. It replaces tens of thousands of dollars worth of PLC and test/measure equipment.

Attach M10s and M40s to extend the I/O capability to thousands of analog and digital inputs and outputs. Attach I3200s and IC101s to add massive quantities of low-level current measurements in large-scale sensor arrays.

Features

  • 10 High-speed fiber optic loops
  • 2 High-speed Ethernet interfaces
  • 16 General purpose +/-10V analog inputs
  • 8 General purpose +/-10V analog outputs
  • 1 Safety relay with watchdog
  • 2 General-purpose relays
  • 1 General-purpose optical isolator
  • Powerful processor running the medical grade RTOS
  • IEC-62304 software development

Applications

  • Scanning & dosimetry control for particle therapy
  • Accelerator and beamline control
  • Large-scale distributed control systems

T1MainPage

Modern Software Package

  • Runs on the industry proven QNX real-time operating system for unmatched reliability and performance
  • Integrated JSON HTTP or Websocket API for data collection and control
  • Built in EPICS server with PVs for all available IO
  • A powerful web GUI with plotting and data collection capabilities compatible with all modern browsers
  • Universal Plug and Play for easy network discoverability
Fibers

Fiber-Optic Communications

Measurement data is transmitted through state-of-the-art fiber-optic cables. The benefits are numerous compared to other forms of data transmission.

  • Fiber-optics are immune to electrical interference
  • Minimal attenuation of light through fibers
  • Fast messaging over enormous distances
  • Radiation hard fiber materials
