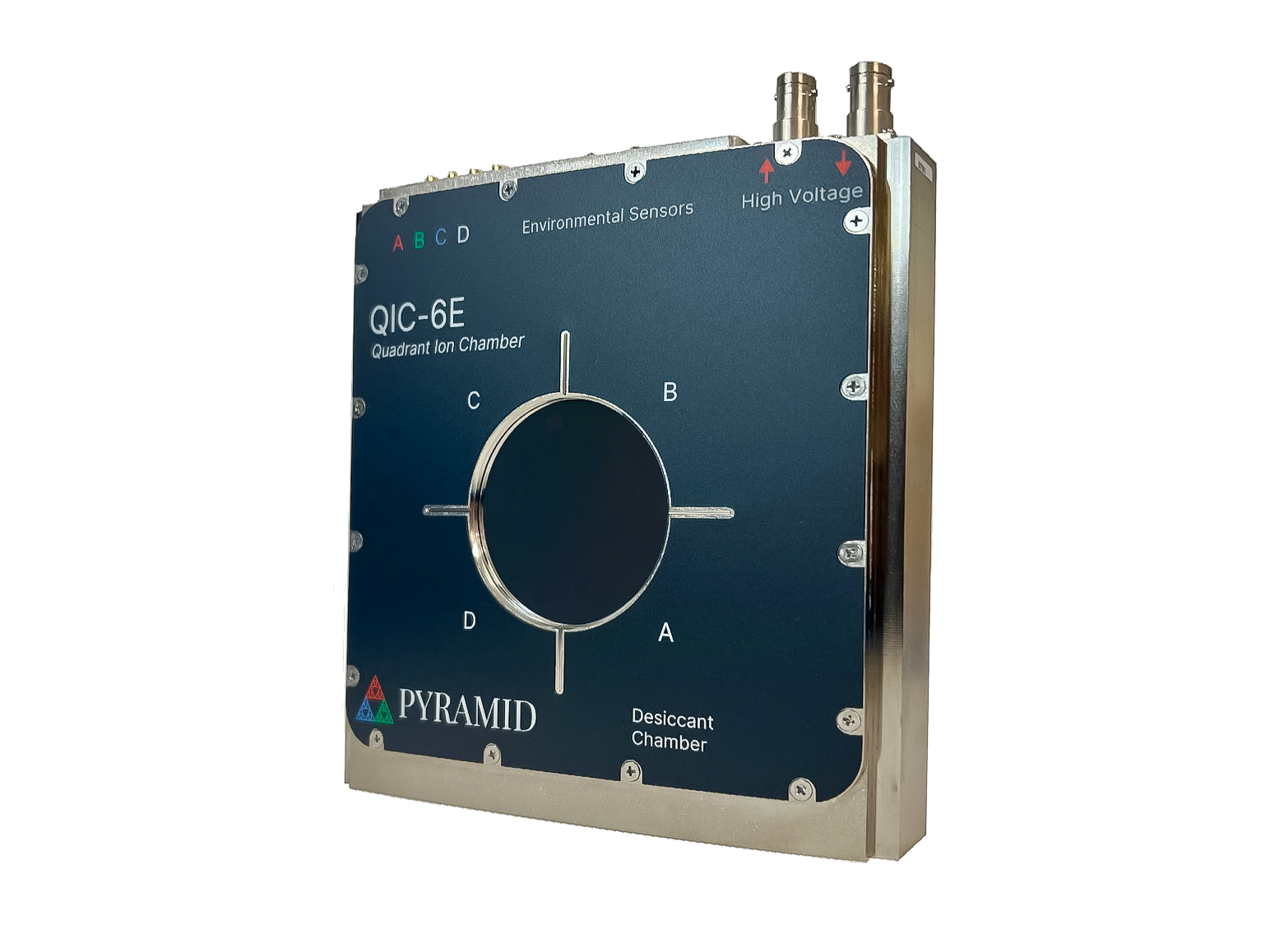

QIC-6E - Ultra-low WET Quadrant Transmission Ionization Chamber
Description
The QIC-6E is a high-precision quadrant transmission ionization chamber, essential in particle physics, beam diagnostics, and radiation therapy, including specialized applications like particle therapy for eye treatments. Its 6-centimeter diameter sensitive area and quadrant readout electrodes are perfectly suited for beam centering, flatness evaluation, and flux measurement. This chamber is particularly effective in low-energy beam settings, thanks to its minimal material thickness and ultra-thin, gold-plated electrode foils.
It supports a wide array of particle types and energy levels and is compatible with various readout electronics. The QIC-6E is a key instrument in delivering accurate and minimal interference in particle therapy for eyes and other ion beam diagnostics.
Key Features
- 6 cm diameter sensitive area.
- 3.6 mm gap spacing between electrodes.
- 66 µm water equivalent thickness (WET)
- Ultra-thin Kapton™ gold-plated electrode foils.
- Electrode patterns laser-cut for high geometric precision.
- Compatible with FX4, F460, and I404 readout electronics.
Applications
- Low energy particle beams in air.
- Particle therapy eye lines.
- Particle therapy beam flux monitoring.
- Particle therapy beam trajectory or flatness monitoring.
- General ion beam diagnostics.
Expertly Built
Electrodes etched with unique laser technology. Assembled and tested by highly skilled technicians in our USA facility.
- Rigorously tested beyond the operating range for uniformity
- Tested with real radiation sources
- White glove treatment from start to finish
- Full documentation provided for each instrument
