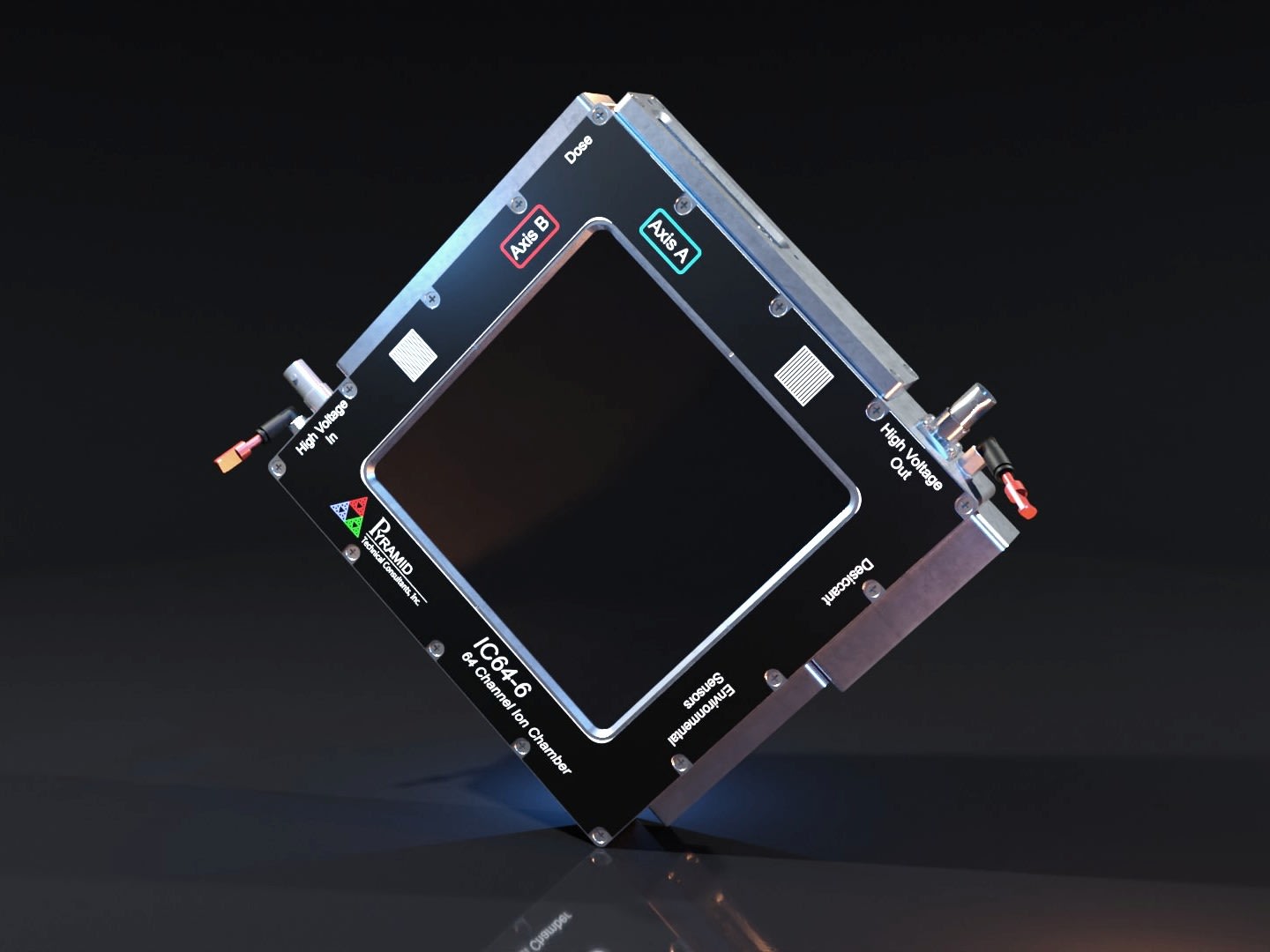

IC64-6 - 64x64 Strip Transmission Ion Chamber

The IC64-6 is a brand-new transmission ionization chamber offering from Pyramid. It has been specifically designed to work in extreme beam currents. The new design came from the requirements of our FLASH research partners. So far, our partners have exposed this chamber to beams up to 800nA. Although our engineers expect the IC64-6 to handle even high currents. Contact us today to talk about your project.

Features

  • 1mm integral plane gap, 3.3mm strip gap
  • High beam current density performance
  • < 200μm water equivalent thickness (WET)
  • 6.4cm x 6.4cm sensitive area with 1mm pitch strips
  • 3.2cm beamline insertion length
  • Standard 68-channel VHDCI Male connectors for strip readout
  • Standard DB9 Male connector for environment readout
  • 1.5kV maximum high voltage for minimal recombination

Applications

  • Measured by an I128S
  • FLASH particle therapy research
  • Pre-scan dosimetry in proton therapy
  • Beam monitoring in high precision beamlines
  • General high-energy ion beam diagnostics

Further Reading

Close Up on Strips

Strip Detectors

Strip detectors have a balance between accuracy on beam position and noise levels. Our strip detectors offer the highest resolution and lowest noise on the market.

  • Laser-machined polyimide electrode substrates
  • High geometric precision
  • Radiation hard with minimal scattering
  • Gold plated readout electrodes
IC128-25 Render

IC128-25

128x128 Strip Transmission Monitor Ion Chamber with Dose Plane

Sensor Board Closeup

Integrated Environment Sensors

Our ion chambers include integrated sensors for dynamic corrections. No need for inconvenient external instruments.

  • Humidity, temperature, and pressure sensors
  • Replaceable camber desiccant
Hand testing IC

Expertly Built

Electrodes etched with unique laser technology. Assembled and tested by highly skilled technicians in our USA facility.

  • Rigorously tested beyond the operating range for uniformity
  • Tested with real radiation sources
  • White glove treatment from start to finish
  • Full documentation provided for each instrument
Isocenter Rail IC64-6 BC-75

Isocenter Diagnostics Equipment

Our isocenter equipment line expands the capabilities of medical and research institutions by catering to underserved applications and addressing intricate use cases. By providing modular and integrated solutions customized to meet each customer's distinct requirements, we enhance their overall experience and outcomes.

Combinations of detectors and electronics combine into pre-packaged experiments and QA tools. MLFC-128, BC-75, IC64-6, PX-3, F460, I128, and the IC-101 integrate to fit your specifications.

PX1 Closeup

FLASH Ready

Flash therapy stands as a breakthrough in radiation therapy. Our commitment centers on delivering researcher-focused, state-of-the-art Flash therapy instruments, prioritizing accessibility and promoting collaboration within the industry.

For expert guidance and partnership opportunities in upcoming radiation therapy endeavors, engage with our dedicated engineering and sales team team today.
