ACAB-USB-XX-RS232 - USB to RS232 Adapter Cable
Description

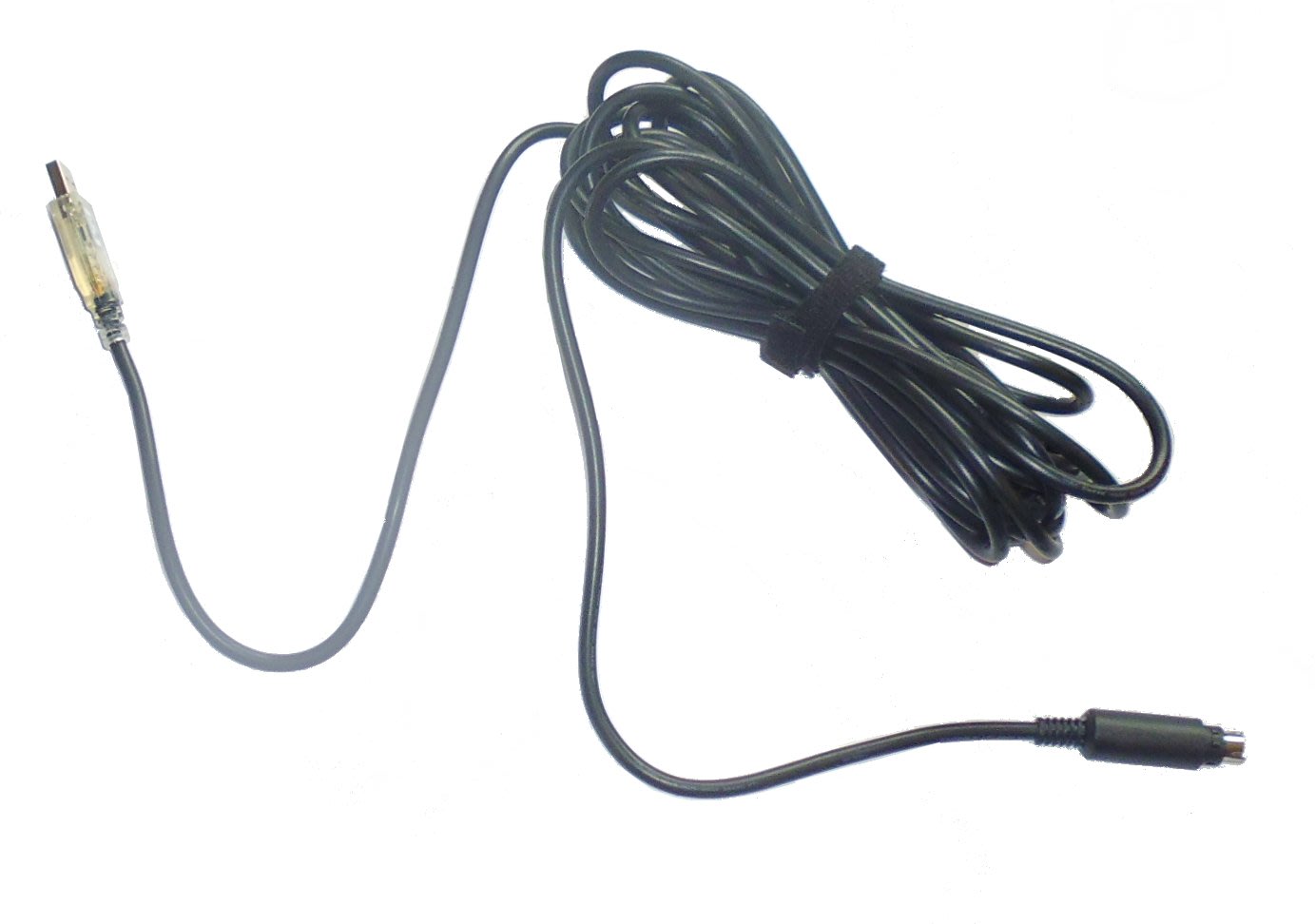

The ACAB-USB-XX-RS232 is a USB to RS-232 adaptor cable built for Pyramid devices that use a 6-pin mini-DIN RS-232 port, such as the A500, I200, and N2400. One end terminates in a standard USB 2.0 A connector with an LED data traffic indicator; the other in a mini-DIN 6-pin connector wired directly to the Tx, Rx, and ground lines used by Pyramid's RS-232 interface.
Drivers install automatically when the cable is connected to a Windows 10 PC; on other operating systems, the appropriate FTDI drivers must be installed manually. The cable is available in two lengths, 6' (1.8m) and 16.4' (5.0m), and the built-in USB-RS232 adaptor is FCC and CE compliant.
Features
- USB 2.0 A male to 6-pin mini-DIN RS-232, wired for direct connection to Pyramid RS-232 ports
- Built-in FTDI USB-RS232 converter, FCC and CE compliant
- LED data traffic indicator on the USB end
- Automatic driver installation on Windows 10; FTDI drivers available for other operating systems
- Available in 6' (1.8m) or 16.4' (5.0m) lengths
Applications
- Connecting Pyramid devices with RS-232 ports to computers with USB ports
- Readout of Pyramid current measurement and pulse counting devices
