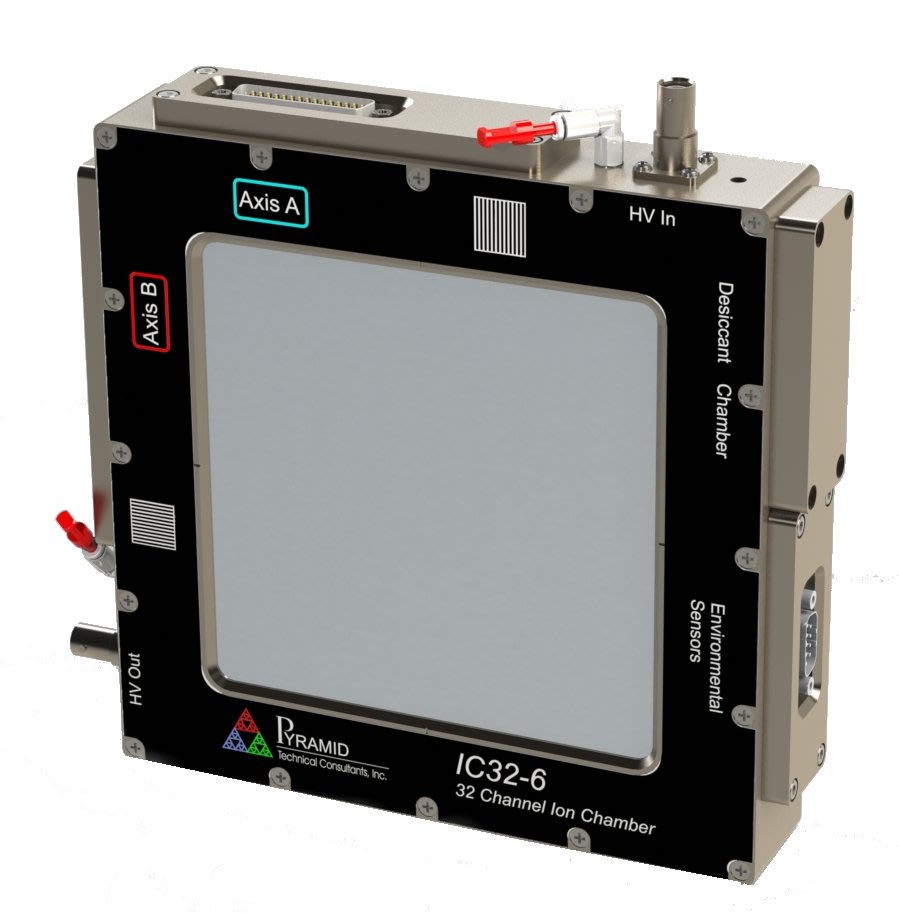

IC32-6 - 32x32 Strip Transmission Ion Chamber
Description
The IC32-6 is a compact, ultra-low-scatter thin-film ionization chamber engineered for precise, real-time monitoring of beam position, symmetry, and shape. Its 32×32 high-resolution strip array provides detailed two-axis profiling with minimal beam disturbance, thanks to an exceptionally low water-equivalent thickness. Built-in environmental sensing ensures stable, repeatable measurements in demanding beamline environments, making the IC32-6 a reliable solution for advanced accelerator systems and high-precision ion beam applications.
Features
- 6.4 cm x 6.4 cm sensitive area with 2 mm pitch strips
- 3.2 cm beamline insertion length
- Small gaps for high beam current density performance
- Standard HD44 Male connectors for strip readout
- Standard DB9 Male connector for environment readout
- <1.5kV high voltage planes for minimal recombination
Applications
Strip Detectors
Strip detectors balance beam position accuracy against noise, and Pyramid's laser-machined polyimide electrodes deliver the highest resolution and lowest noise on the market. Radiation-hard construction and gold-plated readout electrodes ensure precise, repeatable beam position monitoring.
Integrated Environment Sensors
Our ion chambers include integrated sensors for dynamic corrections. No need for inconvenient external instruments.

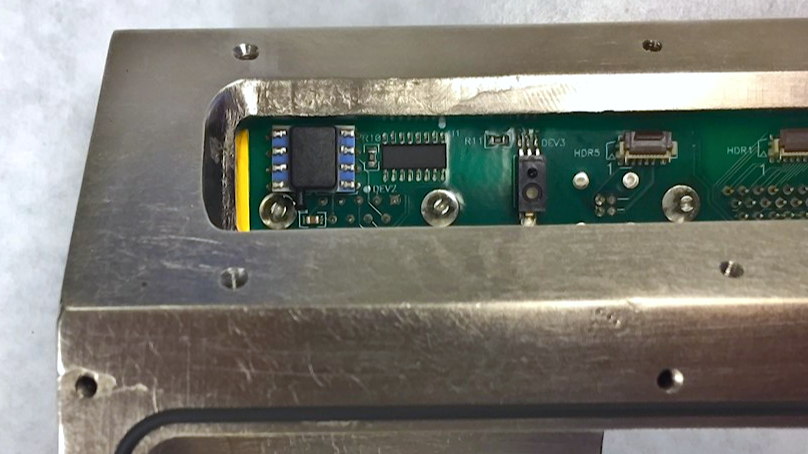

- Humidity, temperature, and pressure sensors
- Replaceable camber desiccant
Expertly Built
Electrodes etched with unique laser technology. Assembled and tested by highly skilled technicians in our USA facility.
- Rigorously tested beyond the operating range for uniformity
- Tested with real radiation sources
- White glove treatment from start to finish
- Full documentation provided for each instrument
