IC256-42 - Large Area 42x35 cm High Resolution Strip Ionization Chamber
Description

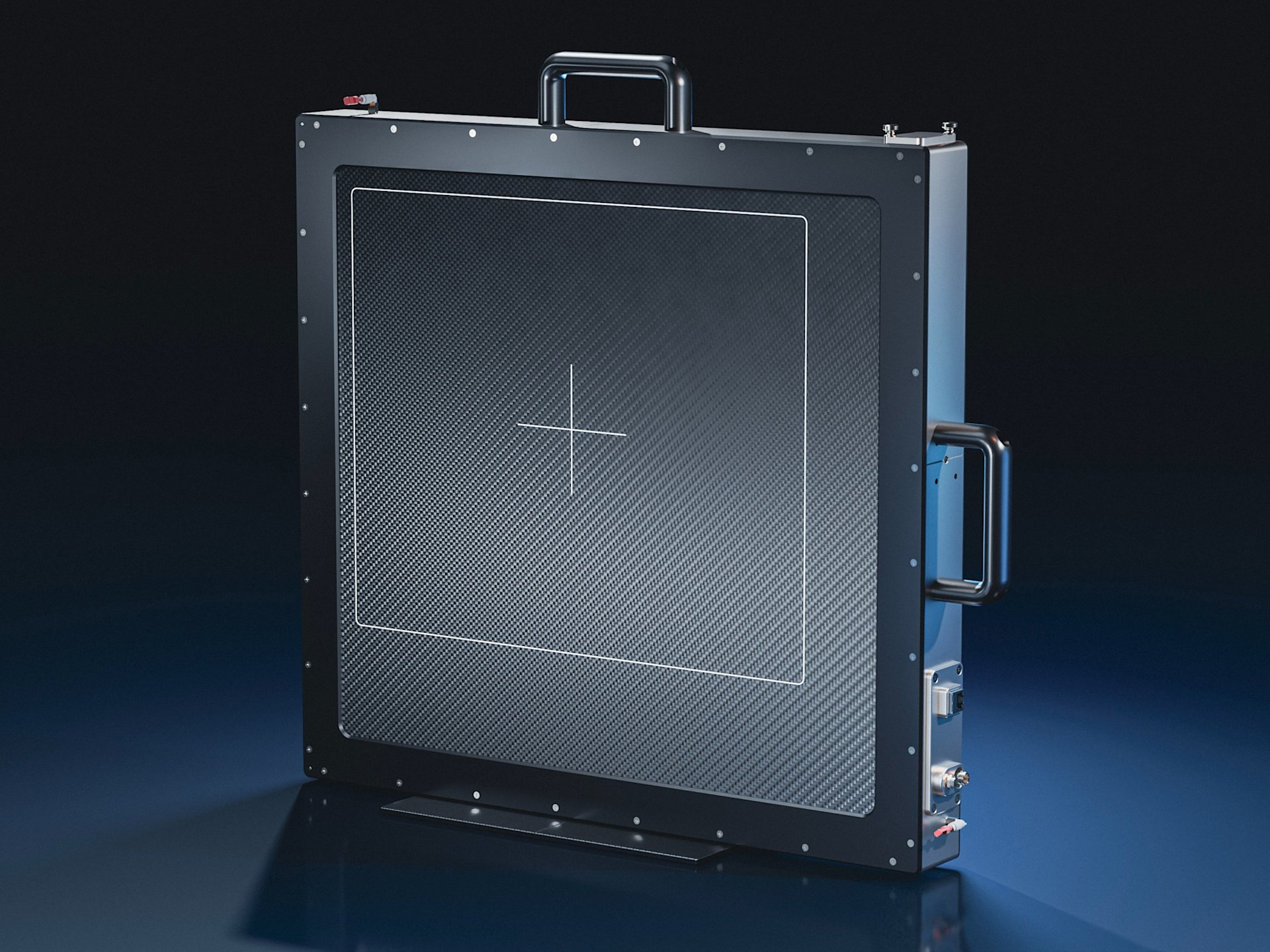

The IC256-42 is a large-format, high-speed, and high-resolution ionization chamber engineered for advanced beam diagnostics. Its fine-strip electrode design provides simultaneous two-axis beam projections, enabling precise analysis of position and axial beam shape. Designed as a versatile isocenter-diagnostics instrument, the IC256-42 consolidates the functionality of multiple measurement devices while delivering enhanced insight into beam behavior.
Features
- Large Active Area: 42 × 35 cm sensitive region optimized for most particle-scanning and beam-diagnostic systems.
- High-Resolution Strip Readout: Fine-pitch electrodes provide sub-millimeter (<1 mm) precision for accurate beam position and size measurements.
- High-Speed Data Acquisition: Fully integrated electronics support data rates up to 6 kHz, enabling real-time beam monitoring.
- Environmental Compensation: Built-in temperature and pressure sensors allow automated ideal-gas-law corrections for stable, reliable measurements.
- Maintained Internal Gas Stability: Replaceable desiccant ensures long-term control of internal gas conditions.
Applications
- Particle accelerator commissioning and tuning
- Calibration of particle-beam scanning magnet systems
- Characterization of beam quality and stability
Isocenter Diagnostics Equipment
Our isocenter equipment line expands the capabilities of medical and research institutions by catering to underserved applications and addressing intricate use cases. By providing modular and integrated solutions customized to meet each customer's distinct requirements, we enhance their overall experience and outcomes.

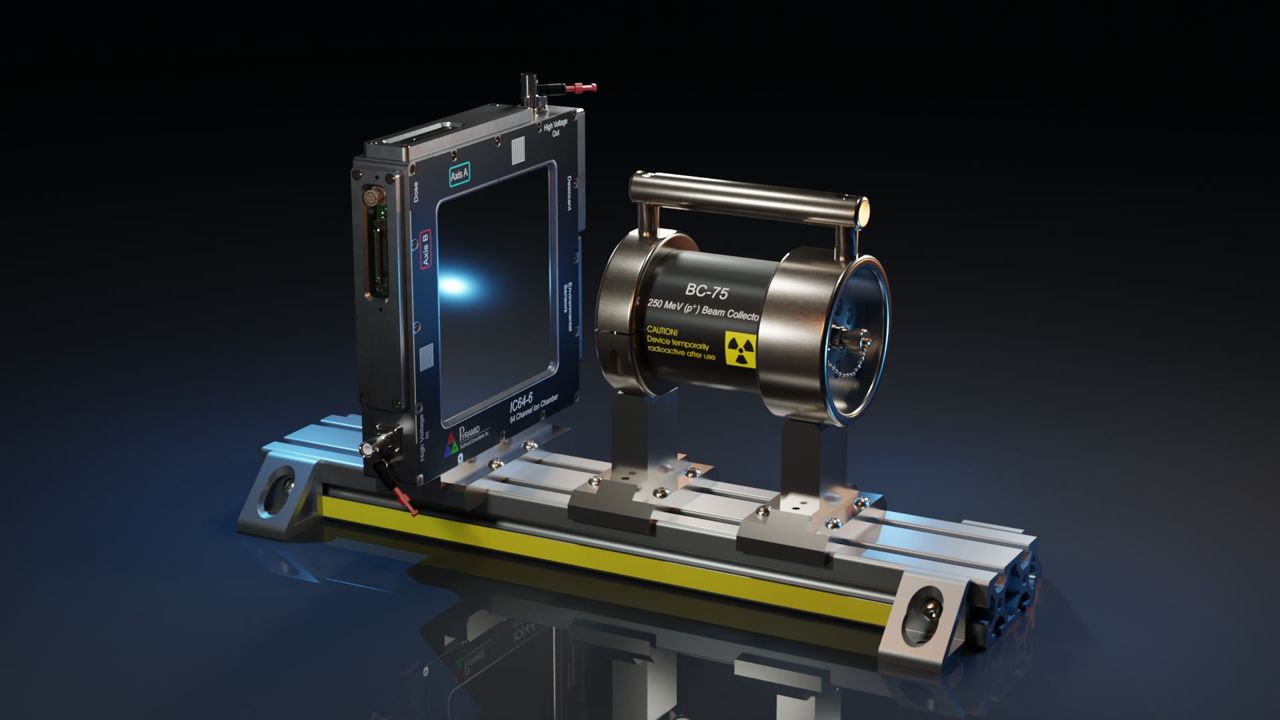

Combinations of detectors and electronics combine into pre-packaged experiments and QA tools. MLFC-128, BC-75, IC64-6, PX-3, F460, I128, and the IC-101 integrate to fit your specifications.
Strip Detectors

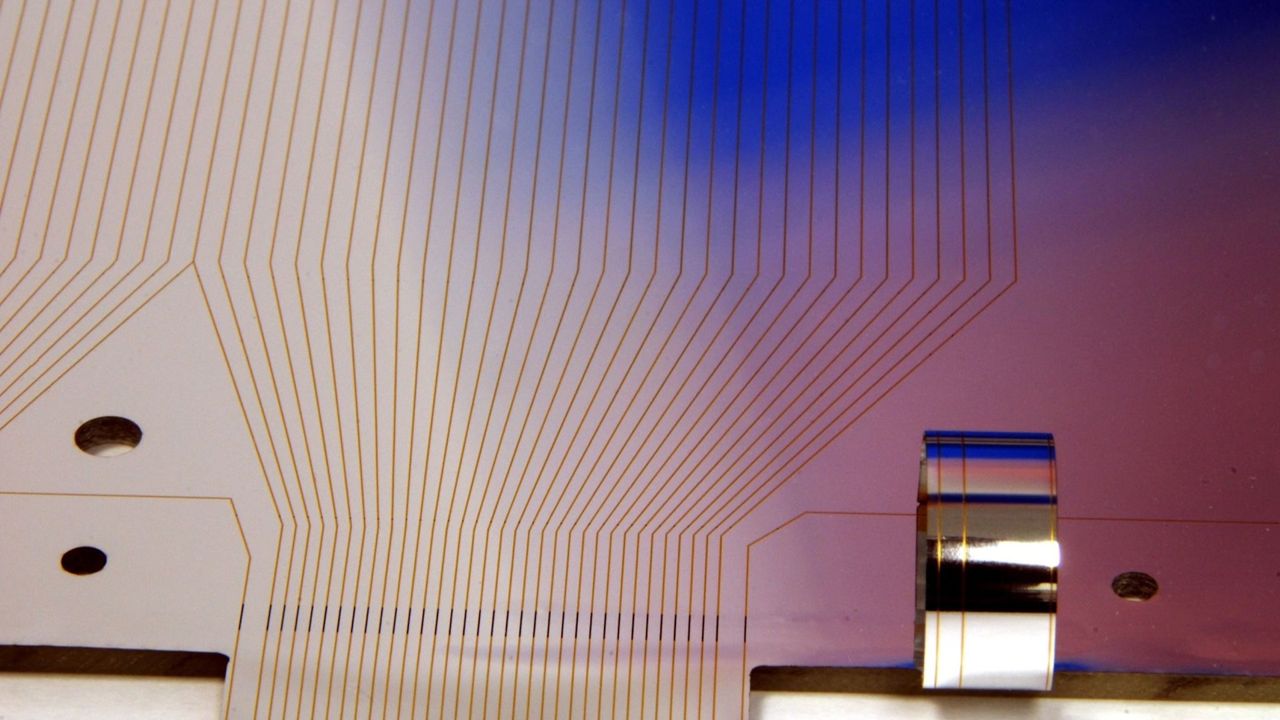

Strip detectors balance beam position accuracy against noise, and Pyramid's laser-machined polyimide electrodes deliver the highest resolution and lowest noise on the market. Radiation-hard construction and gold-plated readout electrodes ensure precise, repeatable beam position monitoring.
Modern Software Package
- Rely on the QNX real-time OS for exceptional performance and stability.
- Dependable data collection and control with JSON HTTP/WebSocket API.
- Comprehensive input/output through the robust, embedded EPICS server.
- Advanced web GUI for real-time data visualization and configuration.
- Enables flexible scripting and integration for a variety of programming languages.
